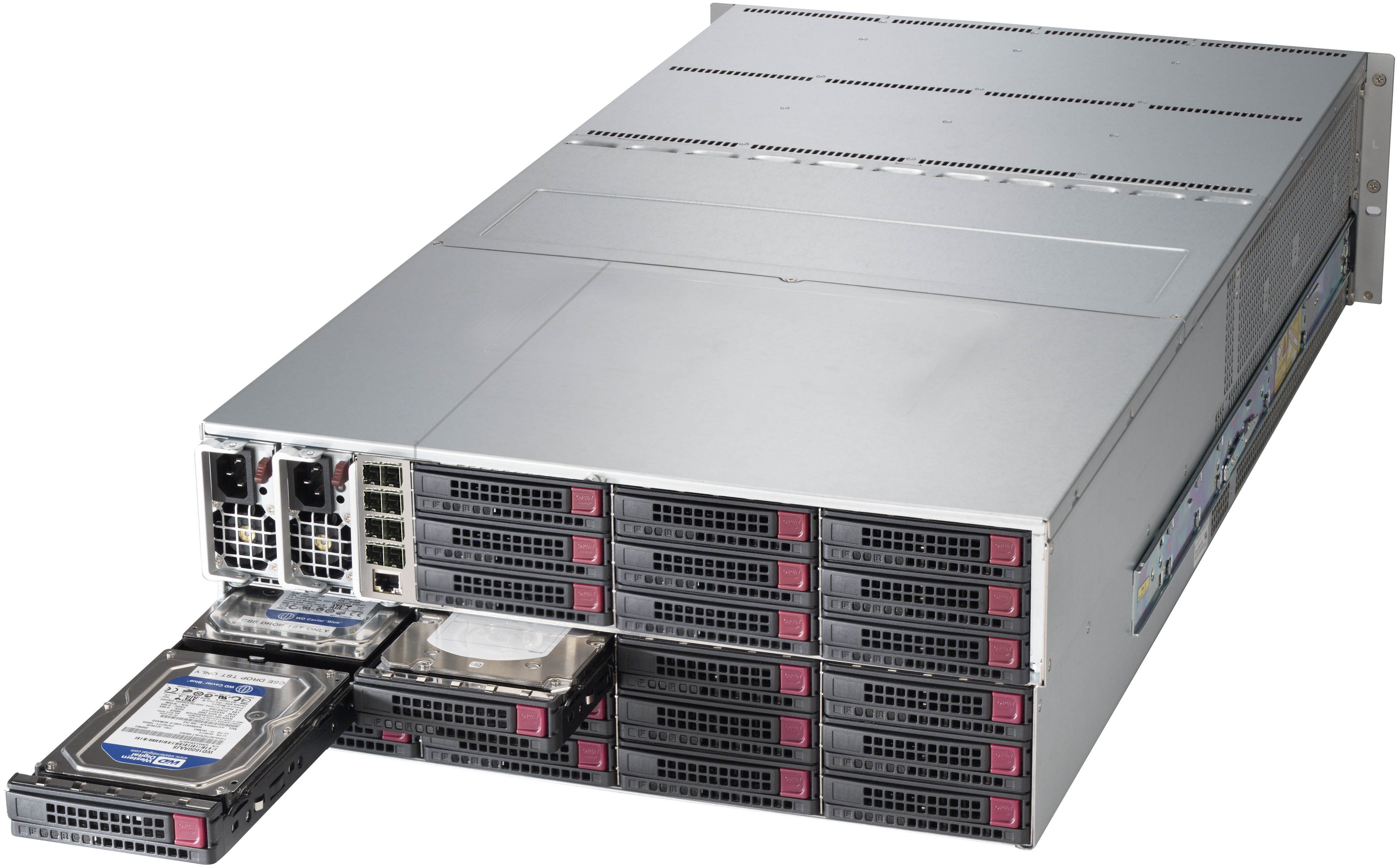

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  • Cloud Backup, Data Replication, or High Density Archive Storage Applications
  1. 4U Double-Density SAS3 JBOD storage chassis
  2. 90 x 3.5" hot-swap SAS2/SATA3 drive bays with SES2
  3. 48-port 4U SC847D SAS2/SAS3 system/JBOD front midplane, support up to 48x 3.5-inch SAS2/SAS3/SATA3 HDD
  4. 42-port 4U SC847D SAS2/SAS3 JBOD rear midplane, support up to 42x 3.5-inch SAS2/SAS3/SATA3 HDD
  5. 1100/1800/2000W 1U Redundant Platinum Level Digital High-efficiency Power Supply with PMBus
  6. 7 x 92mm hot-swap fan(s)
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-847DE16-R2K02JBOD
  • SuperChassis 847DE16-R2K02JBOD

Form Factor
  • 4U Double-Density SAS3 JBOD storage chassis
    •
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 35" (889 mm)
    Net Weight
    • 86 lbs (39.01 kg)
    Gross Weight
    • 118 lbs (53.52 kg)
    Packaging (W x H x L)
    • 26" (660 mm) x 12.5" (318 mm) x 45.5" (1156 mm)
    Available Color
    • Black

    Drive Bays
    • 90 x 3.5" hot-swap SAS2/SATA3 drive bays with SES2

    Backplane
    • 48-port 4U SC847D SAS2/SAS3 system/JBOD front midplane, support up to 48x 3.5-inch SAS2/SAS3/SATA3 HDD
    • 42-port 4U SC847D SAS2/SAS3 JBOD rear midplane, support up to 42x 3.5-inch SAS2/SAS3/SATA3 HDD

    Peripheral Drives
    • 3.5" hot-swap drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 1 Network Activity LEDs
    Systems Cooling
    Fans
    • 7 x 92mm hot-swap fan(s)

    System Monitoring
    • IPMI

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1100/1800/2000W 1U Redundant Platinum Level Digital High-efficiency Power Supply with PMBus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 1100W with Input 100 - 120Vac
    • 1400W with Input 120 - 140Vac
    • 1800W with Input 200 - 220Vac
    • 1980W with Input 220 - 230Vac
    • 2000W with Input 230 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 91.7A / Min: 0.5A (100Vac - 120Vac)
    • Max: 116.7A / Min: 0.5A (120Vac - 140Vac)
    • Max: 150A / Min: 0.5A (200Vac - 220Vac)
    • Max: 165A / Min: 0.5A (220Vac - 230Vac)
    • Max: 166.7A / Min: 0.5A (230Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT847-B3824
    • O/P: 12V/180
    • +5V Max: 100
    • +3.3V Max: 30
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    HD BackplaneBPN-SAS3-847DF148-port 4U SC847D SAS2/SAS3 system/JBOD front midplane, support up to 48x 3.5-inch SAS2/SAS3/SATA3 HDD
    HD BackplaneBPN-SAS3-847DJ142-port 4U SC847D SAS2/SAS3 JBOD rear midplane, support up to 42x 3.5-inch SAS2/SAS3/SATA3 HDD
    Control BoardCSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Control BoardMCP-280-84701-0N2SC847D JBOD Mini SAS HD Ext-to-Int adapter ,HF,RoHS/REACH,PBF
    Cable(s)CBL-0157L1CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
    Cable(s)CBL-0157L-011CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,61.5CM,28AWG
    Cable(s)CBL-NTWK-05841Y-CBL,INT,SC847D,PCB-CAT5E,RJ45 & 2X3F/P2.54,7/12CM,24AWG
    Cable(s)CBL-PWCD-05782Power Cord Type IEC (C14 to C13) 3 ft (14AWG), 15A, 250V,HF,RoHS/REACH,PBF
    Cable(s)CBL-SAST-05312MINI SAS HD,12G,INT,80CM,30AWG
    Cable(s)CBL-SAST-05682MINI SAS HD,12G,INT,35CM,30AWG
    Cable(s)CBL-SAST-05932MINI SAS HD,12G,INT,60CM,30AWG
    Optional Parts List
      Part Number Qty Description
    Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    Cable CBL-SAST-0548 - 1m external Mini SAS HD to external IPASS. 28AWG,HF,RoHS/REACH,PBF
    HDD Tray Converter MCP-220-84707-0N - SC847D HDD Tray 2.5" Adapter (Bracket to install 2.5" HDD on 3.5" Tray),HF,RoHS/REACH,PBF
