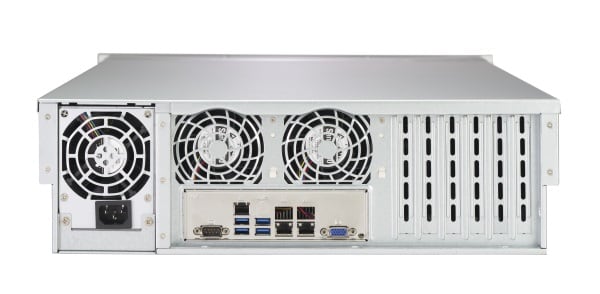

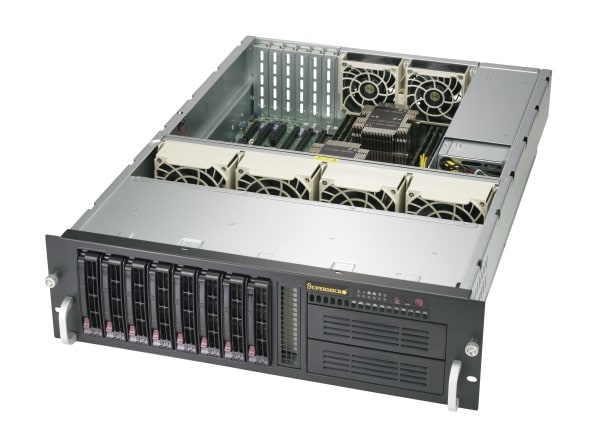

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
  • Cost Effective 3U Chassis with single PWS

Key Features
  1. 650W High-efficiency Gold Level Power Supply with Power Switch
  2. 8x 3.5" Hot-swap SAS3/SATA3 & 2x 5.25" Drive Bays
  3. Support Optional Slim DVD-ROM/DVD-RW
  4. Support Optional Hot-swap Slim HDD/SSD Drive Kits and Mobile Racks
  5. 6x Full-height, Full-length Expansion Slots
  6. Six Internal Fans (4 middle, 2 rear) for 100% Cooling Redundancy
  7. Six LED Indicators
  8. Adjustable Air Shroud Design

Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-833TQC-653B
  • SuperChassis 833TQC-653B

Form Factor
  • 3U chassis - supports maximum motherboard sizes up to 12" x 13" E-ATX
    •
    Processor Support
  • Dual and Single Intel® and AMD processors
    		•

    Dimensions
    Height
    • 5.2" (132 mm)
    Width
    • 17.7" (450 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 69 lbs (31.3 kg)
    Packaging (W x H x L)
    • 26.6" (676 mm) x 13.6" (345 mm) x 34.6" (879 mm)
    Available Color
    • Black

    Expansion Slots
    • 6 full-height & full-length expansion slot(s)

    Drive Bays
    • 8 x 3.5" hot-swap drive bay

    Backplane
    • 3U 8-Port Backplane Supports 8 x 3.5"; SAS3/SATA3 HDD/SSD for X11 Platform

    Peripheral Drives
    • 2 x standard 5.25" drive bay
    • Optional 1 x 3.5" internal fixed drive bay
    • Optional 1 x slim DVD-ROM drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power LED
    • System Overheat LED
    Systems Cooling
    Fans
    • 4 x 9cm hot-swap cooling fan(s)
    • 2 x 80mm rear hot-swap exhaust PWM fan(s)

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    PWS-652-2H
    Dimensions (L x W x H)
    • 308 x 106 x 83.2 mm
    Output Type
    • 20pin ATX
    +12V
    • Max: 54A
    +5V
    • Max: 30A
    +3.3V
    • Max: 25A
    +5Vsb
    • Max: 4A
    Certification
    • 80 Plus Certified  Certified
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudCSE-PT451Air Shroud (side Piece) for 3U Chassis
    Air ShroudMCP-310-38002-0N1SC833/933 Intel DP X8/H8/X9 Universal air shroud 12x13MB
    HD BackplaneBPN-SAS3-833A13U 8-Port Backplane Supports 8 x 3.5"; SAS3/SATA3 HDD/SSD for X11 Platform
    Cable(s)CBL-0160L1NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    Cable(s)CBL-0216L44 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
    CD-ROM & AccessoryMCP-290-83301-0B1Black DVD dummy cover for 832, 833, 835
    Fan(s)FAN-0064L4492X38MM 4-PIN PWM FAN W/ HUS FOR SC833/933
    Fan(s)FAN-0125L4280x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    Drive Tray(s)MCP-220-00093-0B8Black gen 3.5 hot-swap 3.5"; HDD tray (w/o logo)
    Mounting Rail(s)CSE-PT50L13U ball-bearing rail for SC832,833,932,933, 28
    Optional Parts List
      Part Number Qty Description
    Front USB SC-PT29(B) - 2-Ports Front USB Kit (B=Black)
    LCD Module MCP-220-00095-0B - 5.25" USB LCD Kit
    HDD Tray MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    HDD Kit MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
    DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT4 - BLACK TEAC SLIM DVD-RW SATA DRIVE,RoHS
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4 - BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
    DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
    SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
    Mobile Rack CSE-M14TQC - Black SAS3/SATA3 Mobile Rack for 4x 2.5
    Mobile Rack CSE-M28SAB-OEM - Black SAS/SATA Mobile Rack for 8x 2.5" HDD w/o fan module
    Mobile Rack CSE-M28SACB-OEM - Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD w/o fan module,HF,RoHS/REACH,PBF
