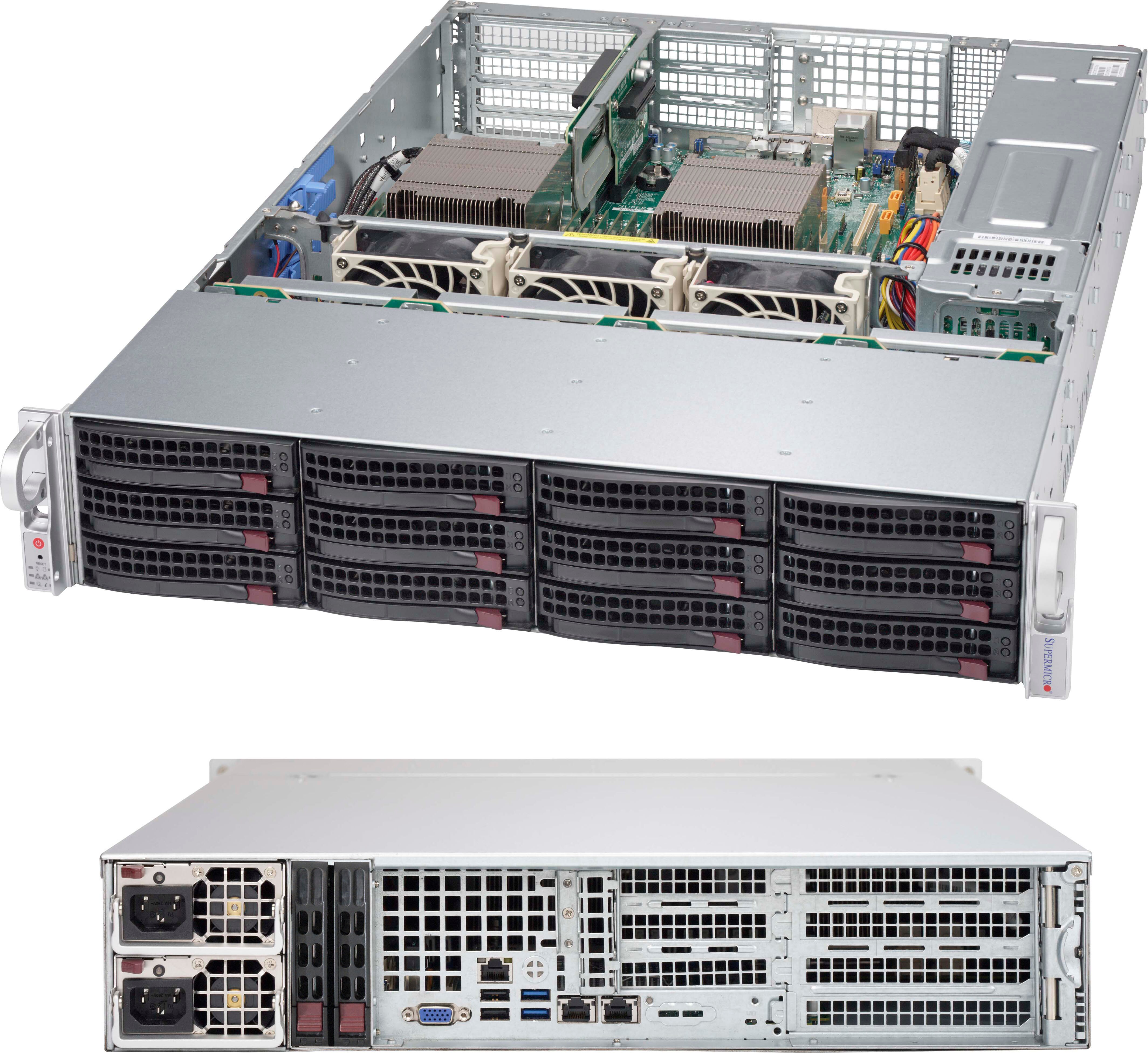

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U chassis support for SMC Proprietary WIO motherboards; max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed.
  2. 12 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
  3. 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD
  4. 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
  5. WIO Slots (4x Full-height, Half-length + 3x Low-profile)
  6. 3 x 8cm high-performance PWM fan(s)
  7. Optional 5 x 6cm fan cooling module for 826B/216B
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-826BA-R1K28WB
  • SuperChassis 826BA-R1K28WB

Form Factor
  • 2U chassis support for SMC Proprietary WIO motherboards; max. motherboard size - 12" x 13", 13" x 13.68".
  • Support up to 12"x13" MB with rear 2.5" HDD option installed.
    •
    Processor Support
  • Dual and Single Intel® and AMD processors
    		•

    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 67 lbs (30.39 kg)
    Packaging (W x H x L)
    • N/A
    Palletized Packing (W x H x L)
    • 37.3" (947 mm) x 27" (686 mm) x 34.5" (876 mm)
    Available Color
    • Black

    Expansion Slots
    • WIO Slots (4x Full-height, Half-length + 3x Low-profile)

    Drive Bays
    • 12 x 3.5" hot-swap SAS/SATA drive bay with SGPIO

    Backplane
    • 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • 3 x 8cm high-performance PWM fan(s)
    • Optional 5 x 6cm fan cooling module for 826B/216B

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
    Power Efficiency
    • 95%
    Total Output Power and Input
    • 1000W with Input 100 - 140Vac
    • 1280W with Input 180 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 83A / Min: 0.5A (100Vac - 140Vac)
    • Max: 106.7A / Min: 0.5A (180Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT826-S8824
    • O/P: 12V/135
    • +5V Max: 40
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    HD BackplaneBPN-SAS-826A112-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD
    Cable(s)CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable(s)CBL-0160L2US POWER CORD 16AWG, PB FREE
    Cable(s)CBL-0182L1PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
    Cable(s)CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    Fan(s)FAN-0126L4380x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    Front PanelFPB-FP826-D1Front control board Dual color LED(FP826-D)forSC826,213,216,219
    Front PanelTB8261Front panel adaptor board (TB826) forSC826,213,216,219
    Drive Tray(s)MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5
    Drive Tray(s)MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5"; HDD tray
    Power DistributorPDB-PT826-S88241PDB with shorter 24pin and 8pin cables for SC826B
    Mounting Rail(s)MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2";W
    Mounting Rail(s)MCP-410-00007-0N1Rail screw bag
    Rear WindowMCP-240-82609-0N1SC826B, 216B WIO rear window
    Optional Parts List
      Part Number Qty Description
    Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    HDD Kit MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
    Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
    Fan Kit MCP-320-82603-0N - 6cm fan cooling module for 826B/216B (5X6cm fan)
    Tray(s) MCP-220-00043-0N - Black hotswap gen 4 3.5 to 2.5 HDD tray
