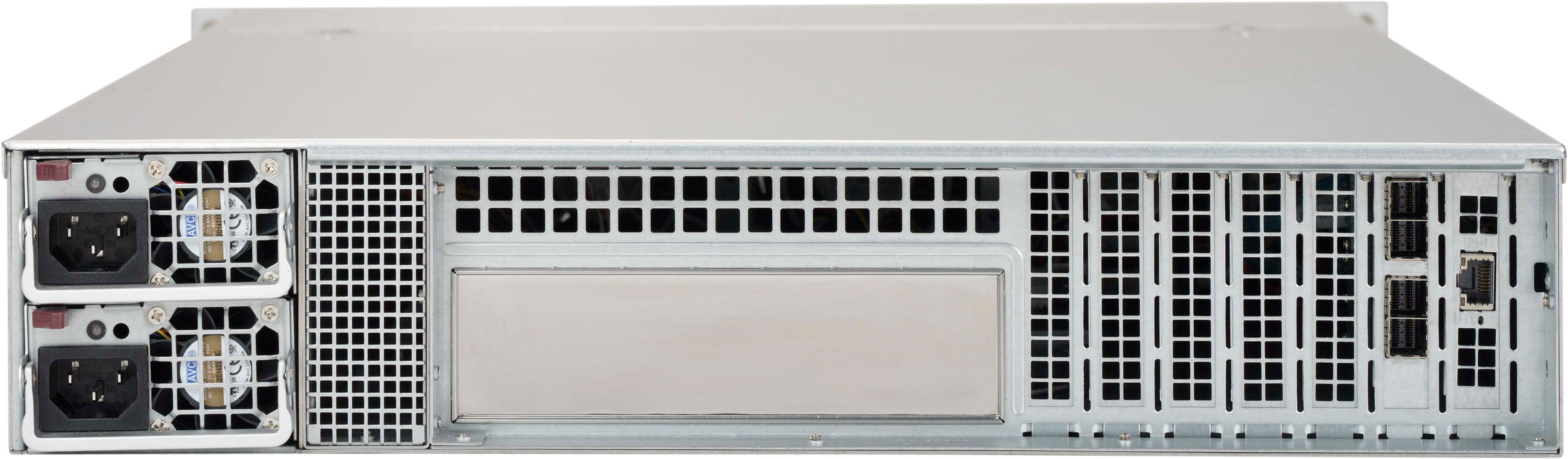

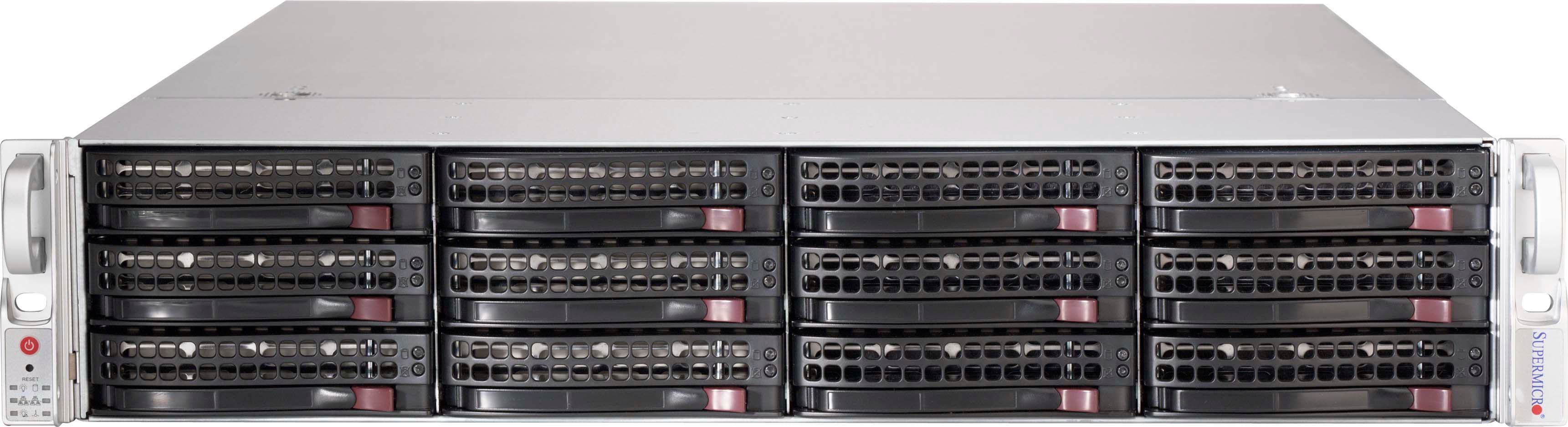

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. Cloud Backup, Data Replication, or High Density Archive Storage Applications

    2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
  2. Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
  3. 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
  4. 1x IPMI port for Remote System Power on/off and system monitoring
  5. Support NTP for time synchronization & RTC battery backup
  6. 740W (1+1) 95% efficient Platinum level power supplies
  7. 3 x 80mm high efficient hot-swappable fans for best system cooling
  8. Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
  9. Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller


For optimal performance and quality, Supermicro validated drives are recommended. Please contact your Supermicro sales rep for validated HDD.
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-826BE1C-R741JBOD
  • SuperChassis 826BE1C-R741JBOD

Form Factor
  • 2U JBOD storage chassis
    •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Net Weight
    • 29 lbs (13.15 kg)
    Gross Weight
    • 60 lbs (27.22 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black

    Drive Bays
    • 12 x 3.5" hot-swap HDD bays for JBOD solution

    Qualified SAS Controllers
    • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
    • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller

    Backplane
    • 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 1 Network Activity LEDs
    Systems Cooling
    Fans
    • 3 x 80x38mm hot-swap cooling fan(s)

    System Monitoring
    • IPMI

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 740W Redundant Platinum Power Supply W/PMbus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 740W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT826-8824
    • O/P: 12V/135
    • +5V Max: 40
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • FCC class A
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    HD BackplaneBPN-SAS3-826EL1112-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
    Control BoardCSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)CBL-CDAT-060114 Pin to 4 Pin I2C cable, 50cm, 26AWG
    Cable(s)CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    Cable(s)CBL-SAST-05324Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
    Part(s)MCP-260-00011-0N1I/O shield without any opening
    Optional Parts List
      Part Number Qty Description
    Cable CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
    Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    Cable CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
    HDD Tray MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    SuperChassis 826BE1C-R741JBOD
