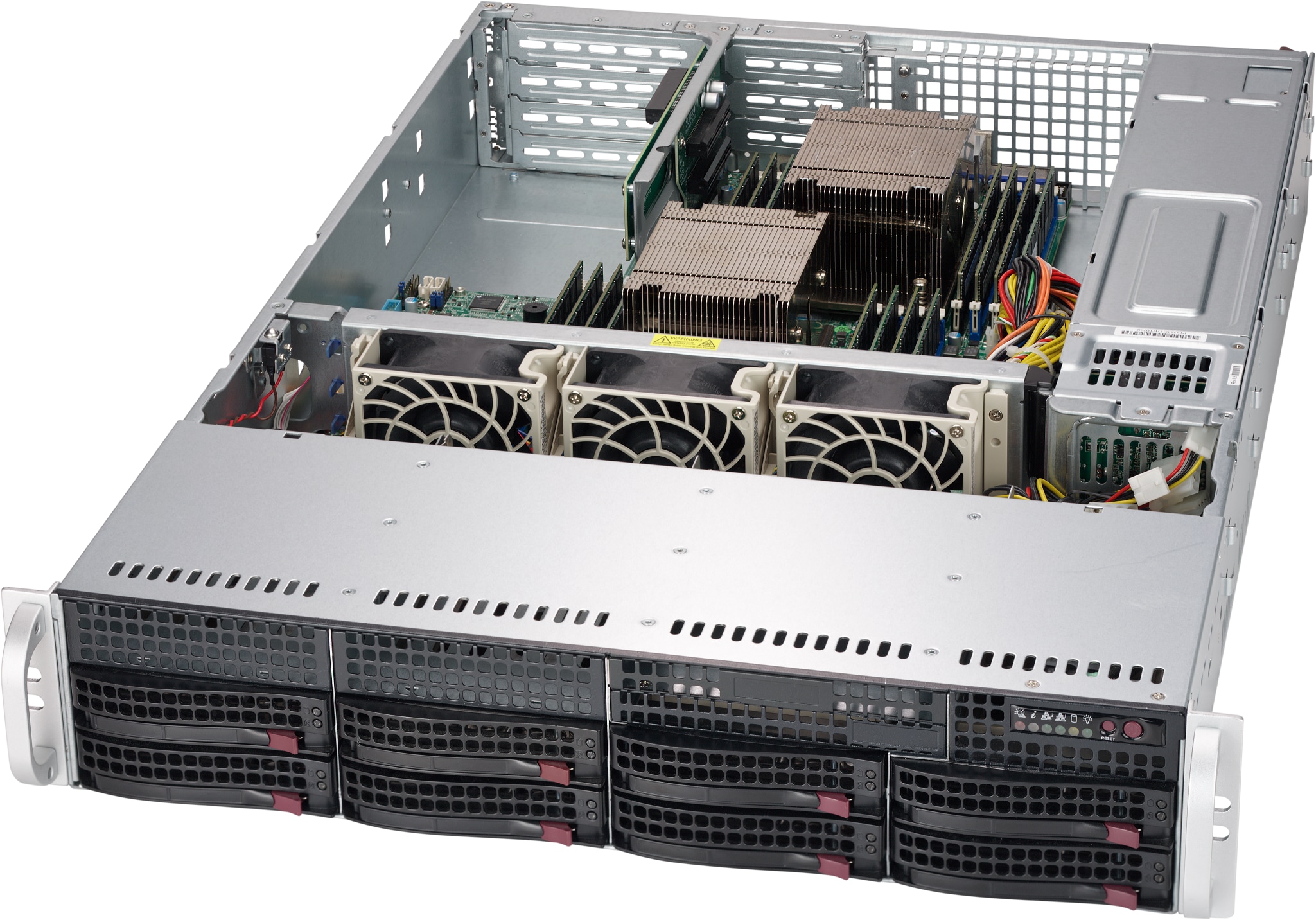

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

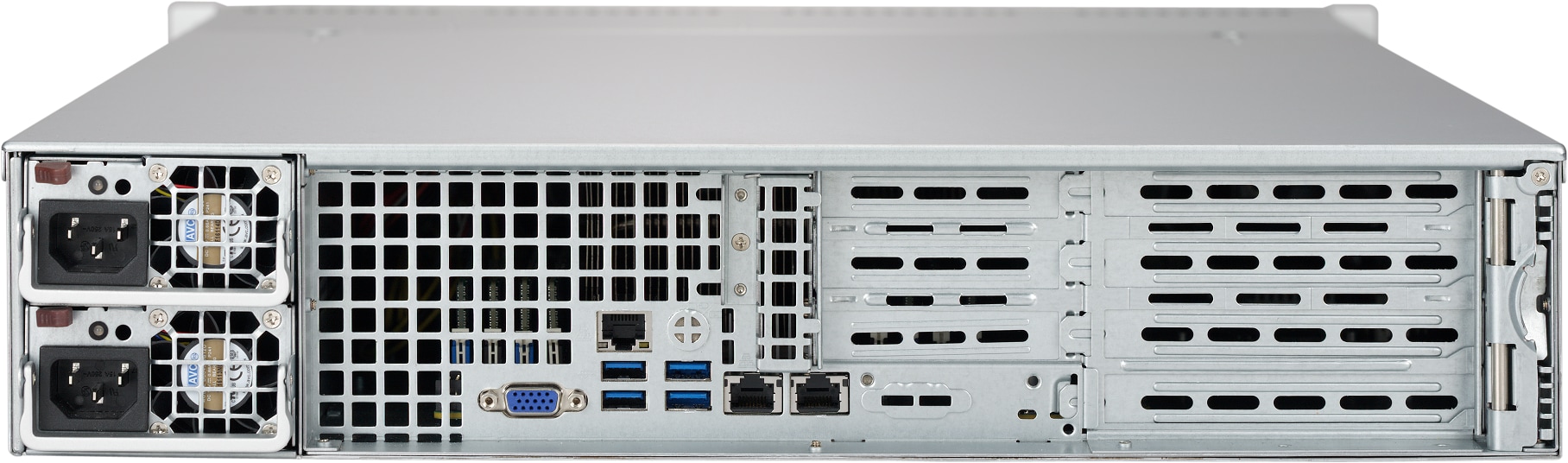

Key Features
  1. 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
  2. 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
  3. 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 740W Redundant Platinum Power Supply W/PMbus
  5. 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
  6. 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-825TQC-R740WB
  • SuperChassis 825TQC-R740WB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 52 lbs (23.59 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black

    Expansion Slots
    • 4 full-height & full-length expansion slot(s)
    • 3 low-profile expansion slot(s)

    Drive Bays
    • 8 x 3.5" hot-swap SAS3/SATA drive bay
    • 2 x 3.5" fixed drive bay

    Backplane
    • 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD

    Peripheral Drives
    • Optional 1 x slim DVD-ROM drive bay
    • Optional 2 x USB 2.0 ports
    • Optional 1 x COM port tray
    • Optional 2 x USB 3.0 ports

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    • System Information LED
    Systems Cooling
    Fans
    • 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 740W Redundant Platinum Power Supply W/PMbus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 740W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT825-8824
    • O/P: 12V/75
    • +5V Max: 30
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • FCC class A
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    HD BackplaneBPN-SAS3-825TQ18-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable(s)CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable(s)CBL-0160L2US POWER CORD 16AWG, PB FREE
    CD-ROM & AccessoryMCP-290-00007-011Black DVD dummy cover for SC825, 836
    Fan(s)FAN-0126L4380x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    Front PanelFPB-FP836-D1Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
    Drive Tray(s)MCP-220-00023-011Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    Drive Tray(s)MCP-220-00075-0B8Black gen 5.5 hot-swap 3.5" HDD tray
    Drive Tray(s)MCP-220-82502-0B2Black fixed 3.5" HDD tray or FDD dummy tray
    Power DistributorPDB-PT825-88241SC825 24PIN REDUNDANT POWER DISTRIBUTOR
    Mounting Rail(s)MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2";W
    Rear WindowMCP-240-00102-0N12U WIO rear window for SC825, SC826, SC213, SC216
    Optional Parts List
      Part Number Qty Description
    Adaptor Bracket MCP-120-82503-0N - Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
    Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis
    Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    Front USB MCP-220-00007-01 - Black USB/COM port tray for SC825, 836
    Front USB MCP-220-00114-0N - Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH
    Tray(s) MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
    Tray(s) MCP-220-00023-01 - Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    Tray(s) MCP-220-82503-0B - Black slim FDD kit for SC825/829,828,835
    Cable CBL-0157L - 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
    Cable CBL-SAST-0699 - internal mini SAS HD to 4 SATA 12G, 75/75/90/90cm w/75cm SB, S. 30AWG,RoHS/REACH
    Cable CBL-0082L - Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Cable CBL-0180L-01 - SET OF 4 SATA 70/59/48/38CM ROUND S-RA, 26AWG
    LCD/OLED Solutions MCP-220-00119-0B - 2nd Gen Black 3.5" OLED tray, support 1x internal 2.5" HDD
    SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
    HDD Tray Converter MCP-220-00043-0N - Black hot-swap gen 4 3.5 to 2.5 HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5 - BLACK TEAC SLIM DVD SATA DRIVE,HF,RoHS
    SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
    Peripheral Drive(s) FPD-TEAC-SB - BLACK SLIM TEAC FLOPPY DRIVE FOR SC813
    Front Bezel MCP-210-82503-0B - Black SC825 front bezel
    SuperChassis 825TQC-R740WB
