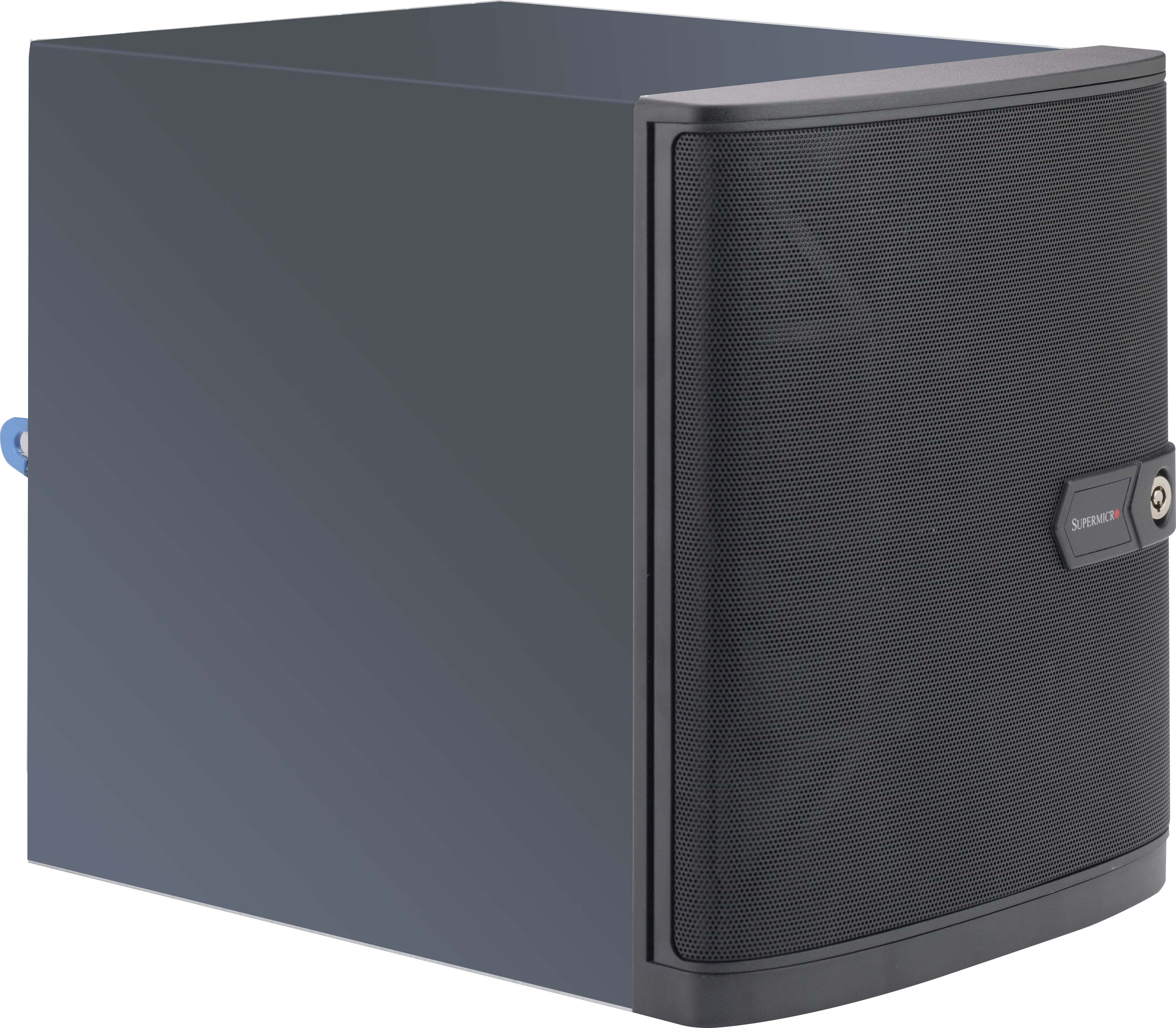

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. Compact Mini-Tower: D 11"x W 8.27"x H 9.45"
  2. Support wide range of Mini-ITX (6.75"x 6.75") motherboards
  3. 4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay
  4. 2 USB3.1 Gen1 ports(front), chassis intrusion switch, Kensington Lock supported
  5. 1 low-profile expansion slot for add-on cards
  6. 250W 80 PLUS Bronze-certified High-efficiency power supply

Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-721TQ-250B2
  • SuperChassis 721TQ-250B2

Form Factor
  • Compact Mini-Tower Chassis for motherboard support size: (6.75" x 6.75")
    •
    Dimensions
    Height
    • 9.45" (240.03 mm)
    Width
    • 8.27" (210.06 mm)
    Depth
    • 11" (279.4 mm)
    Net Weight
    • 13.5 lbs (6.12 kg)
    Gross Weight
    • 15 lbs (6.8 kg)
    Packaging (W x H x L)
    • 12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)
    Available Color
    • Black

    Expansion Slots
    • 1 low-profile expansion slot(s)

    Drive Bays
    • 4 x 3.5" hot-swap SAS/SATA
    • 2 x 2.5" fixed drive bay

    Backplane
    • 4x3.5" SAS2/SATA3 backplane w/SES-II

    Peripheral Drives
    • 1 x slim DVD-ROM drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 1 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    Ports
    • 2x USB 3.0 Port(s)
    Systems Cooling
    Fans
    • 1 x 12cm rear exhaust fan(s)

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 0°C - 40°C (32°F - 104°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F – 140°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non-Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Power Supply
    1U 250W Flex ATX Multi-output Bronze Power Supply, FSP FSP250-50LC
    Power Efficiency
    • 85%
    Total Output Power and Input
    • 250W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 150 x 81.5 x 40.5 mm
    Output Type
    • 24pin ATX
    -12V
    • Max: .3A / Min: 0A
    +12V
    • Max: 18A / Min: 1A (100Vac - 240Vac)
    +5V
    • Max: 14A / Min: .5A
    +3.3V
    • Max: 12A / Min: .3A
    +5Vsb
    • Max: 2.5A / Min: 0A
    Certification
    • Bronze Certified  Bronze Certified
    Components
    Standard Parts List
      Part Number Qty Description
    HD BackplaneCSE-SAS-733TQ14x3.5" SAS2/SATA3 backplane w/SES-II
    Cable(s)CBL-CUSB-08011USB 3.0,INT,20 PIN/F TO 20PIN/F,60CM,30/26AWG,RoHS
    Fan(s)FAN-0124L4112 CM x12 CM fan
    Drive Tray(s)MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray
    Power Supply & AccessoryPWS-251-1H11U 250W Flex ATX Multi-output Bronze Power Supply
    Optional Parts List
      Part Number Qty Description
    Adaptor HDD carrier MCP-220-00043-0N - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT3 - Black slim SATA DVD (8x DVD, 24x CDR), TEAC
    SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD kit
    Cable CBL-PWEX-0645 - Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG
    Adaptor HDD carrier MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    Motherboard (for CSE- 721TQ-250B2)
    C9Z390-CG-IW X11SCL-iF
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
    Servers (for CSE- 721TQ-250B2)
    5029C-T
