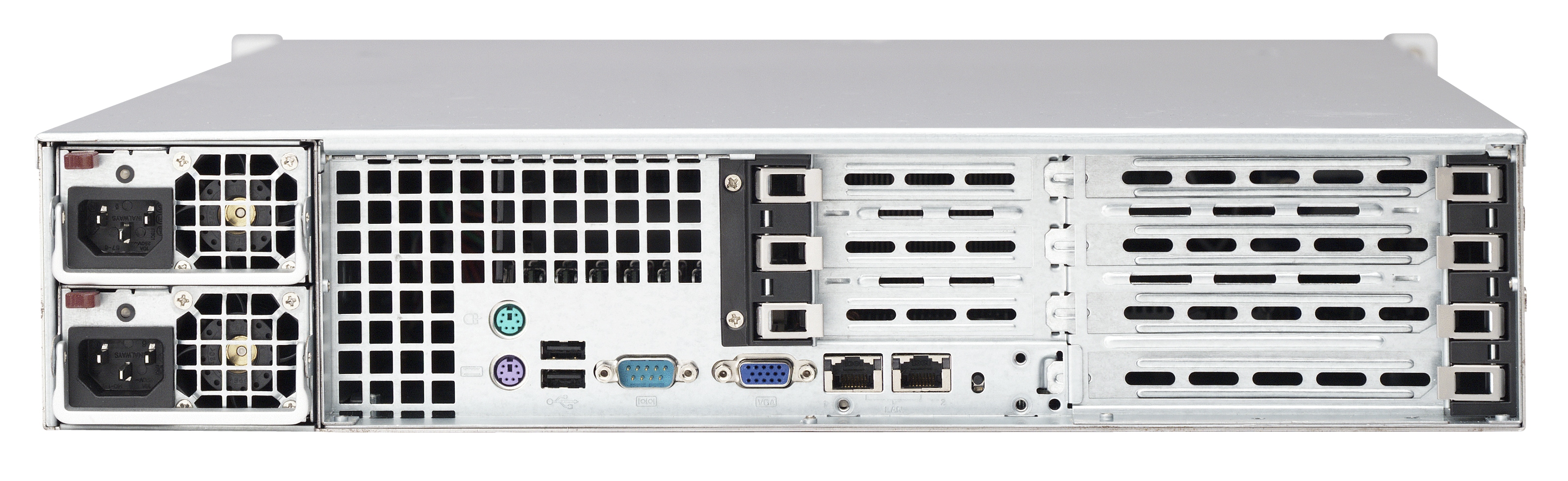

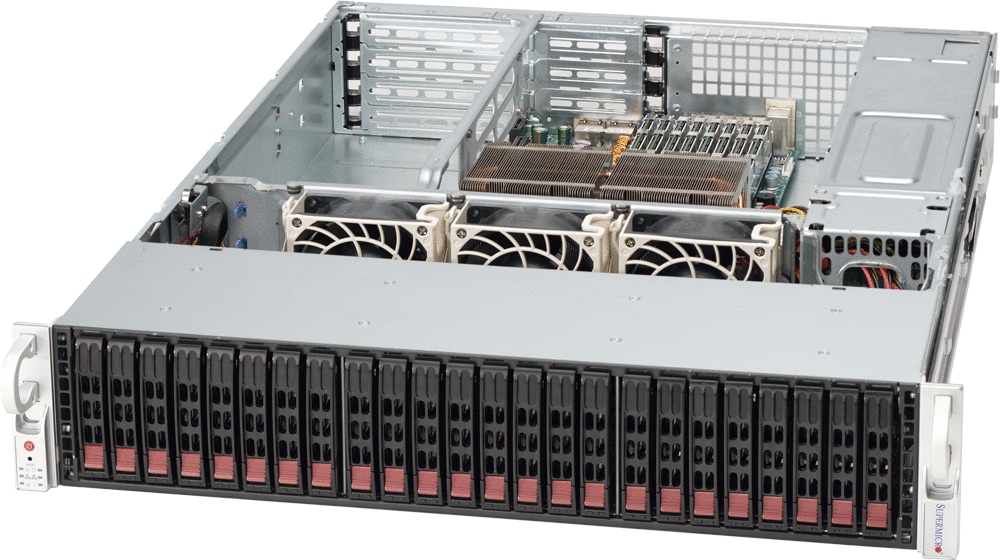

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U chassis support for SMC Proprietary UIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed.
  2. 24 x 2.5" hot-swap SAS/SATA drive bay
  3. 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
  4. 4 full-height & half-length expansion slot(s) , 3 low-profile expansion slot(s)
  5. 3 x 8cm high-performance PWM fan(s)
  6. Optional 5 x 6cm hot-swap cooling PWM fans
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-216BE16-R920UB
  • SuperChassis 216BE16-R920UB

Form Factor
  • 2U chassis support for SMC Proprietary UIO motherboards max. motherboard size - 12" x 13", 13" x 13.68".
  • Support up to 12"x13" MB with rear 2.5" HDD option installed.
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 24.8" (630 mm)
    Gross Weight
    • 53 lbs (24.04 kg)
    Packaging (W x H x L)
    • 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)
    Available Color
    • Black

    Expansion Slots
    • 4 full-height & half-length expansion slot(s)
    • 3 low-profile expansion slot(s)

    Drive Bays
    • 24 x 2.5" hot-swap SAS/SATA drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    Systems Cooling
    Fans
    • 3 x 8cm high-performance PWM fan(s)
    • Optional 5 x 6cm hot-swap cooling PWM fans

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 920W Redundant Platinum Super Quiet power supply W/PMbus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 920W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 75A / Min: 1A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT829-S8824
    • O/P: 12V/100A
    • +5V Max: 45A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB
    • UL/CUL
    Components
    Optional Parts List
      Part Number Qty Description
    Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    HDD Kit MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
    Fan Kit MCP-320-82603-0N - 6cm fan cooling module for 826B/216B (5X6cm fan)
    Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
    SuperChassis 216BE16-R920UB
