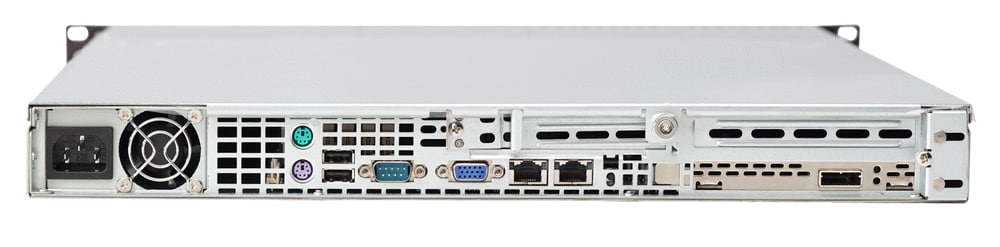

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. Optimized for Universal I/O (UIO) motherboard
  2. 8 x 2.5" hot-swap SAS/SATA drive bay
  3. SAS or enterprise SATA HDD only recommended
  4. 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD
  5. 1 full-height & full-length expansion slot(s) (Riser Card Required), 1 full-height & half-length expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required)
  6. 4 x 40x56mm counter-rotation PWM fan(s)
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-113TQ-700UB
  • SuperChassis 113TQ-700UB

Form Factor
  • Optimized for Universal I/O (UIO) motherboard
    •
    Processor Support
  • Dual, single Intel® / AMD processors
    		•

    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Gross Weight
    • 35 lbs (15.88 kg)
    Packaging (W x H x L)
    • 25" (635 mm) x 9" (229 mm) x 33" (838 mm)
    Available Color
    • Black

    Expansion Slots
    • 1 full-height & full-length expansion slot(s) (Riser Card Required)
    • 1 full-height & half-length expansion slot(s) (Riser Card Required)
    • 1 low-profile expansion slot(s) (Riser Card Required)

    Drive Bays
    • 8 x 2.5" hot-swap SAS/SATA drive bay
    • SAS or enterprise SATA HDD only recommended

    Backplane
    • 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD

    Peripheral Drives
    • 1 x Slim DVD-ROM Drive

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • 4 x 40x56mm counter-rotation PWM fan(s)

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    Dimensions (L x W x H)
    • x x mm
    Power Distributor
    • PDB-PT815-8824
    • O/P: 120/66A
    • +5V Max: 24A
    • +3.3V Max: 21A
    • -12V Max: 0.6A
    Certification
    • N/A
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-19001-0N1SC815/113/116 Intel DP X9, X8 PC air shroud,1368x13/12x13MB
    HD BackplaneBPN-SAS-113TQ18-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD
    Cable(s)CBL-0157L2CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
    Cable(s)CBL-0206L2SATA,INT,ROUND,ST-ST,48CM,26AWG
    Cable(s)CBL-0227L2SATA,INT,ROUND,ST-RA,48CM,26AWG
    Cable(s)CBL-0335L1CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
    Cable(s)CBL-PWCD-0160-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
    CD-ROM & AccessoryDVM-TEAC-DVD-SBT1Black slim SATA DVD, TEAC
    Fan(s)FAN-0086L4440x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
    Front PanelMCP-280-00017-0N1FRONT PANEL CONTROL BOARD FOR SC113
    Cooling Fan & AccessoryMCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Cooling Fan & AccessoryCSE-PT01351FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
    Drive Tray(s)MCP-220-00047-0B8Black gen 3rd hot-swap 2.5inch HDD tray
    Power DistributorPDB-PT815-88201SC815 20PIN PDB SUPPORT X8
    Part(s)MCP-290-00037-0N1SC113 Control panel module (w/o DVD)
    Power Supply & AccessoryMCP-250-00008-0N1SC113 Single Power Distributor Cover
    Power Supply & AccessoryPWS-702A-1R1700W 1U REDUNDANT POWER SUPPLY MODULE
    Mounting Rail(s)MCP-290-00043-0V1Rail set for SC113
    Rear WindowMCP-240-00083-0N1UIO rear window for SC113 single PWS
    Optional Parts List
      Part Number Qty Description
    Air Shroud MCP-310-00026-01 - Air Shroud for SC815-650 (AMD Server)
    Air Shroud MCP-310-00033-01 - Air Shroud for 815U, UP MB (Intel, AMD share)
    Mounting Rail MCP-290-00056-0N - Short outer rail, /quick, optional for 1U 17.2
    Mounting Rail MCP-290-00052-0N-BULK - Outer rail, /quick, optional for 1U 17.2
    Tray(s) MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
    Tray(s) MCP-220-00087-0B - Black USB tray for slim DVD bay
    Peripheral Drive(s) DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
    SuperChassis 113TQ-700UB
    1. Products
    2. Chassis
    3. 1U
    4. [SC113TQ-700UB]

    Certain products may not be available in your region
