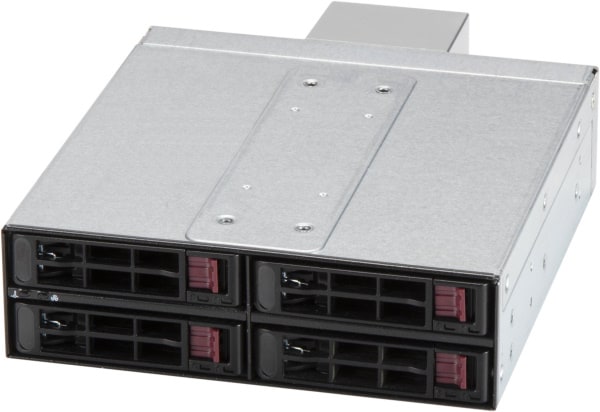

Key Features 1. 4x 2.5" Hot-swap SAS3/SATA3 HDDs
2. Overheat LED indication
3. Drive Activity/Failure LED
4. 1x 5.25" Drive Bay Enclosure
5. 4x SATA HDD Connectors, up to 12Gbs support

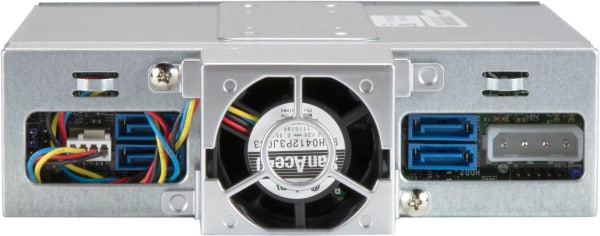

6. 4cm Cooling Fan 12.5K RPM 16 CFM
Available Colors
Black
Downloads
Manual
Specifications
Dimensions
5.8" (W) x 1.6 " (H) x 7.9 " (D)
147 (mm) x 41 (mm) x 201 (mm)
Gross Weight
4 lb
Available Color
Black
Occupancy
1 x 5.25" drive bays
Capacity
4 x 2.5" hot-swap SAS/SATA hard drives
Cooling Subsystem
40mm exhaust fan
System Monitoring
Drive activity LED & failure LED
Fan failure LED & alarm
Overheat LED indication
Compatibility
Chassis
SC758 Series
SC832, SC833, SC835 Series
SC219, SC213, SC823, SC822 Series
SC731, SC732, SC733, SC743, SC745, SC747, SC748 Series
Standard Parts List
Part Number
Qty
Description
Mobile Rack
CSE-M14TQC
1
Black SAS3/SATA3 Mobile Rack for 4x 2.5" HDD with fan module
Drive Trays
MCP-220-00098-0B
4
Black gen 1.5 hot swap 2.5" HDD tray
Cooling Fan
FAN-0061L4
1
40X28mm 4-PIN PWM Fan
Backplane
BPN-SAS3-M14TQ
1
Backplane supports up to 4 x 2.5" 12Gb/s SAS/SATA HDD/SSD Purpose: for Mobile Rack HF, RoHS/REACH
Optional Parts List
Part Number
Qty
Description
CBL-0340L(50cm)
Cable
---
SATA to SATA 50CM, 26AWG
CBL-SAST-0624(70cm)
Cable
---
SATA to SATA 70CM, 30AWG
CBL-0481L(81cm)
Cable
---
SATA to SATA 81CM, 30AWG
CBL-SAST-0699(75cm)
Cable
---
Mini-SAS HD to 4 SATA, 90/90/75/75cm w/75cm SB, 30AWG, 12Gb/s
