The Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The GbE adapter AOC-AG-i2M/G is a flexible and scalable GbE solution providing 2 RJ45 ports. Based on the Intel® network controller i350 with performance-enhancing features and power management technologies, the AOC-AG-i2M/G provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter can also function as a secure networking port for server remote management.

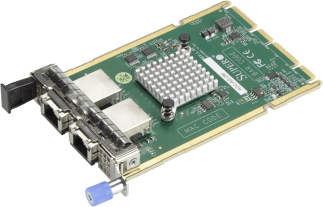

AOC-AG-i2M

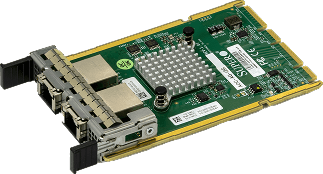

AOC-AG-i2G
To order, contact your distributor. This product is only available through Supermicro.
Key Features
Advanced I/O Module (AIOM) Form Factor
2x1Gbps ports with RJ45 Connectors
Intel® i350 GbE controller
Energy Efficient Ethernet (EEE)
Reliable and proven Gigabit Ethernet technology
Asset Management Features with thermal sensor
NC-SI for Remote Management
Compliance
RoHS
RoHS Compliant 6/6
Specifications
General:
Advanced I/O Module (AIOM) Form Factor
Intel® i350 GbE Controller
2x1Gbps ports: 2x RJ45 Connectors
Networking Features
IEEE 802.3 auto-negotiation for speed, duplex, and flow control
IEEE 802.3x and 802.3z compliant flow control support
Automatic cross-over detection function (MDI/MDI-X)
