SSE-T7132S - 400Gb Ethernet Switch
  Products  Networking     Switches [ SSE-T7132S ]
High-performance SONiC Open Networking 400GbE aggregation switch

Supermicro’s next generation 400Gbps Open Networking Switch SSE-T7132 is designed to provide high density and superior performance to meet the modern data datacenter demands.

The Super Micro Computer SSE-T7132 is professional datacenter switch with robust 50 Gbps PAM4 SERDES lowers the cost per bit and enables higher scale I/O such as 200 GbE and 400 GbE while maintaining backward compatibility with 10/25G NRZ.

SSE-T7132SR delivers exceptional forwarding performance for today’s networking applications such as High Performance Computing Clusters, Cloud computing and most of the data center applications. With the ability to use it as a single SKU over various network layers such as Data Center Spine, leaf, ToR and DCI applications, SSE-T7132 provides easy of management and thus less burden to users.

With 1U rack size occupancy and high port density 400G/200G/100G, T7132 achieves minimalistic setup in the rack. SSE-T7132 comes in standard and reverse airflow models that can operate at variety of speeds such as 32x400Gbps QSFP56-DD or 64 x200Gbps QSFP56 or 128x100Gbps QSFP28 using the breakout cables. Switch comes with dual and redundant power supplies and FANs that are FRU capable. The included rail kit facilitates rack-mounting installations.

With emerging SONiC OS support on SSE-T7132 switch provides greater flexibility to applications such as large-scale enterprises, service providers and cloud computing. Supermicro provides user friendly enhancements to the OS that suits to the various data center applications.

Machine learning (ML) and artificial intelligence (AI) applications enabled by faster CPUs, and flash storage are driving the next generation of datacenter cloud networks based on 400G Ethernet. Evolution to the next generation requires systems that deliver optimized performance for ML/AI and address the growth and increased scale of modern cloud environments. Line rate performance and proven layer 2 and layer 3 features with up to 128 ports of 100G or 64 ports of 200GE or 32 ports of 400G along with break through power efficiency and FLASHLIGHT analytics

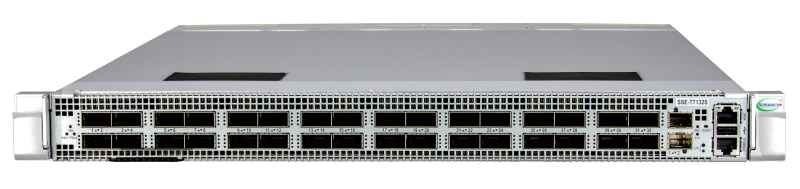

Supermicro SONiC Open Networking 400GbE aggregation switch SSE-T7132S

Operating System / NOS
The SSE-T7132 series switch comes with preloaded SONiC OS.
No additional licensing is required.

Download
Datasheet
  • Standard ToR Ethernet Switches [ Download ]
Manuals


Specifications
  • Key Switch Specs
    • Form Factor: 1 RU
    • Capacity: 25.6Tbps
    • Interfaces Speeds: 10, 25, 40, 50, 100, 200 & 400GbE
    • Supported default Configurations: 32x400GbE,
      • 28x400G+4x100G, 24x400G+8x100G,
      • 32x100G,
      • 72x25G+8x100G+6x400G,
    • Operating System: SONiC OS


  • Key Advantages
    • DC Optimized Silicon for AI Industry leading Latency
    • Power Efficient
    • FLASHLIGHT Analytics


  • OS Features
    • MAC addresses per system: up to 44K
    • IPv4 Host: up to 192K
    • IPv4 LPM: up to 288K
    • IPv6 Host: up to 94K
    • IPv6 LPM (≤ /64): up to 44K
    • IPv6 LPM (> /64): up to128K
    • IPv4 Multicast: up to 47K
    • IPv6 Multicast: up to 54K


    *The values mentioned are max per attribute and overall values for each attribute will depend upon the profile selected at the boot time
  • Key Capabilities and Advantages
    • Up to 12.8T performance
    • Up to 128x 100GbE, 64x 200GbE or 32x 400GbE
    • 70MB Buffer for Superior Network
    • Quality
    • RoCEv2/RDMA support for best QoS
    • 2x+ lower latency, largest on-chip buffers
    • FLASHLIGHT™telemetry. Pinpoint any network delays, drops, or congestion and correlate network events all in hardware with zero impact to performance. Accelerating issue resolution and higher automation and self-healing autonomous networks
    • Line-Rate Programmability
      • Standards & Software based
      • No impact to throughput or latency
Hardware Features
  • Interface Ports
    • 32x QSFP-DD Ports
    • 1x RJ45 Serial Console
    • 1x RJ45 100/1000BASE-T Management
    • 1x USB Type A Storage


  • Onboard CPU Engine
    • Intel Quad Core CPU
    • 16GB DDR4 DRAM
    • 16MB SPI Flash
    • 128GB SSD


  • Physical and Environmental
    • 1RU, Mountable in either 19” or 21” racks
    • Dimensions: (WxDxH) 433 x 600 x 44 mm (17.1 x 23.6 x 1.73 inches)
    • Weight: (Switch Unit) 11.52kg
    • Front-to-Rear and Rear-to-Front airflow versions available
    • 2x Redundant, Load Sharing, Hot Swappable PSUs
    • Input Voltage: 100 to 240V AC at 5-60Hz
    • 1300W Maximum Power (with Pluggable Optic)
    • Hot Swappable 6+1 Redundant Fan Modules

Software Features
  • Layers 2
    • VLAN
    • VLAN Trunking
    • MAC Aging


  • Layers 3
    • BGP/BGP MP
    • BGP Graceful Restart
    • IPv6
    • Basic VRF
    • ECMP
    • L3 RIF counters
    • Mgmt VRF
    • VRF


  • Port
    • LLDP
    • LAG
    • LACP Fallback
    • MTU Settings
    • Static Port Breakout
    • Sub-port support
  • Management and Monitoring
    • SNMP
    • Syslog
    • Everflow
    • OOM
    • TCPDump
    • Critical Resource Monitoring
    • Mirroring
    • TACACS+
    • Sensor transceiver monitoring
    • sFlow
    • BDC/HDC with remote & local collectors


  • QoS
    • CoPP
    • COS
    • PFC
    • PFC Watermark
    • PFC WD
    • Asymmetric PFC
    • ECN
    • RDMA
    • WRED


  • ACL
    • ACL permit/deny
    • IPv6 ACL
    • Dynamic ACL upgrade
    • ACL Statistics


  • Utilities
    • Fast Reload
    • Warm Reload
    • DHCP Relay Agent
    • NTP
    • Transparent QoS Settings
    • ZTP
    • Python 2/3 support

Safety
  • EU:
    • IEC 60950-1:2005,
    • IEC 60950-1:2005/AMD1:2009,
    • IEC 60950-1:2005/AMD2:2013,
    • EN 60950-1:2006 including
    • A11:2009/A1:2010/A12:2011/A2:2013


  • CSA／cUL:
    • CAN/CSA C22.2 No. 62368-1:19
    • ANSI/UL 62368-1, 3rd Ed.


  • CE／UKCA:
    • EN 55032:2015+A11:2020 Class A, BS EN 55032:2015+A11:2020 Class A
    • EN 300 386 V2.1.1(2016-07) Class A,
    • EN IEC 61000-3-2:2019, BS EN IEC 61000-3-2:2019,
    • EN 61000-3-3:2013+A1:2019, BS EN 61000-3-3:2013+A1:2019,
    • EN 55035:2017+A11:2020, BS EN 55035:2017+A11:2020,
    • EN 300 386 V2.1.1(2016-07)

      • (IEC 61000-4-2 Edition 2.0 2008-12, IEC 61000-4-3 Edition 3.2 2010-04, IEC 61000-4-4 Edition 3.0 2012-04, IEC 61000-4-5 Edition 3.1 2017-08, IEC 61000-4-6 Edition 4.0 2013-10, IEC 61000-4-8 Edition 2.0 2009-09, IEC 61000-4-11 Edition 3.0 2020-01)


  • ICES：
    • ICES-003 Issue 7, Class A


  • FCC:
    • FCC Part 15 Subpart B


  • CB:
    • CB 242716-80161384
    • IEC 62368-1:2014
    • EN 62368-1:2014+A11:2017


  • Japan (VCCI):
    • VCCI 32-1


  • AUS/NZS:
    • AS/NZS CISPR 32:2015 AMD 1:2020

Electromagnetic Compatibility
  • EU:
    • CISPR 32
    • EN 55032
    • BS EN 55032
    • CISPR 35
    • EN 55035
    • BS EN 55035
    • EN6100-3-2
    • BS EN 6100-3-2
    • EN6100-3-3
    • BS EN 6100-3-3
    • EN 300 386


  • North America:
    • 47CFR Part 15(CFR 47) Class A
    • ICES003 issue7 Class A


  • Japan (VCCI):
    • VCCI CISPR 32-1


  • Aus/Nz (ACMA):
    • AS/NZS CISPR 32


  • Taiwan (BSMI):
    • CNS 15936


  • Korean (KCC):
    • KN32 Class A
    • KN35


  • China (CCC):
    • GB9254.1

Environmental
EU (RoHS)

EU (REACH)
Available SKUs
  Part Number Description
Layer 2/3 400G
Ethernet Switch		 SSE-T7132S   AC Power Supply with Regular Airflow (front to back)
SSE-T7132SR   AC Power Supply with Reverse Airflow (back to front)
Layer 2/3 400G
Ethernet Switch		 SSE-T7132D   DC Power Supply with Regular Airflow (front to back)
SSE-T7132DR   DC Power Supply with Reverse Airflow (back to front)

Optics & Cables Supported
Cable Type Cable Model Length SMC P/N
400G DAC QSFP-DD 400G straight DAC cable, 30AWG 1M CBL-NTWK-0957-QSFPDD-1
400G DAC QSFP-DD 400G straight DAC cable, 28AWG 2M CBL-NTWK-0957-QSFPDD-2
400G DAC QSFP-DD 400G straight DAC cable, 26AWG 3M CBL-NTWK-0957-QSFPDD-3

400G AEC 400G QSFP-DD, to QSFP-DD, AEC,3M 3M CBL-NTWK-0970-AEC-3
400G AEC 400G QSFP-DD, to QSFP-DD, AEC,5M 5M CBL-NTWK-0970-AEC-5
400G AEC 400G QSFP-DD, to QSFP-DD, AEC,7M 7M CBL-NTWK-0970-AEC-7
400G AOC QSFP-DD 400g TO 400g 10M AOC 10M CBL-QSFPDD-400G-AOC-10

200G DAC 200G, QSFP56, DAC, Straight 3M CBL-NTWK-0956-QSFP56-3
100G DAC QSFP28,100GbE,PASSIVE,LSZH,3m, QSFP28 Copper 3M CBL-NTWK-0942-MQ28C30M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,0.5m,Molex QSFP28 Copper 0.5M CBL-NTWK-0942-MQ28C05M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,1m,Molex QSFP28 Copper 1M CBL-NTWK-0942-MQ28C10M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,1.5m,Molex QSFP28 Copper 1.5M CBL-NTWK-0942-MQ28C15M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,2m,Molex QSFP28 Copper 2M CBL-NTWK-0942-MQ28C20M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,2.5m,Molex QSFP28 Copper 2.5M CBL-NTWK-0942-MQ28C25M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m,Molex QSFP28 Copper 3M CBL-NTWK-0943-SQ28C30M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,1m, QSFP28 Copper 1M CBL-NTWK-0943-SQ28C10M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m, QSFP28 Copper 3M CBL-NTWK-0943-SQ28C30M
100G DAC ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,5m, QSFP28 Copper 5M CBL-NTWK-0943-SQ28C50M

100G Transceivers TXCVR, QSFP28,100GBASE-SR4, 850nm, MMF, MPO up to 100M TRX-100GbE-SR4-FIN
100G Transceivers TXCVR, QSFP28,100GBASE-DR1, up to 500M TRX-100G-DR1-01

400G Transceivers QSFP-DD 400G-SR8 100Meter up to 100M TRX-400G-SR8-01
400G Transceivers QSFP-DD 400G-DR4 500Meter up to 500M TRX-400G-DR4-03
400G Transceivers QSFP-DD 400G-DR4+ 2000Meter up to 2KM TRX-400G-DR4PLUS-01
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
