A+ Server 2113S-WTRT
A+ Products Systems 2U [ 2113S-WTRT ]




Integrated Board
H11SSW-NT

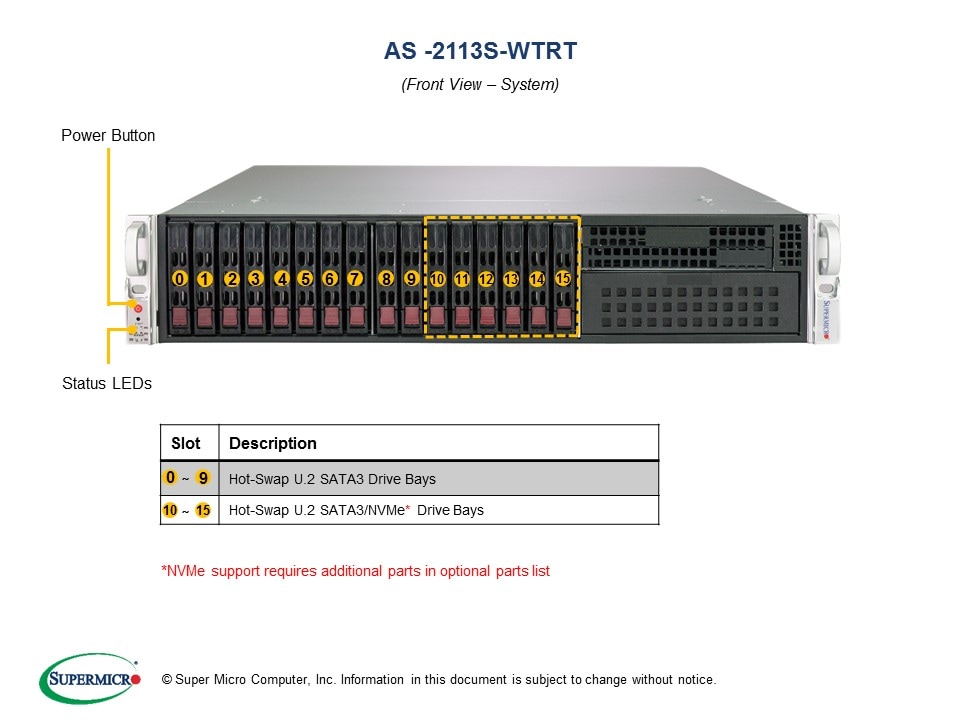

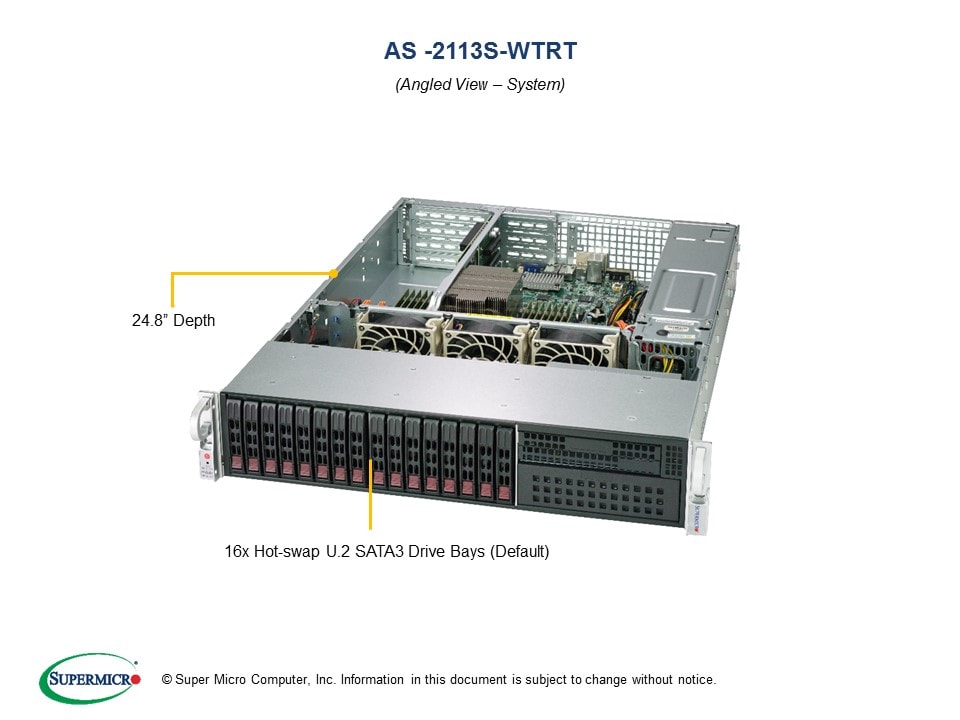

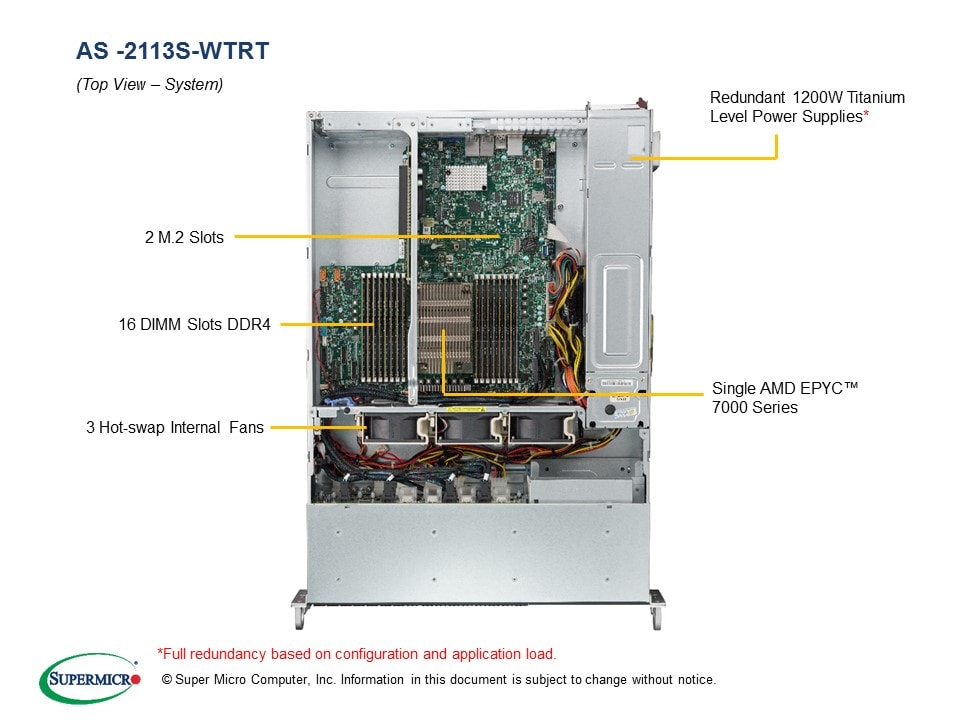

Views: | Angled View | Top View |

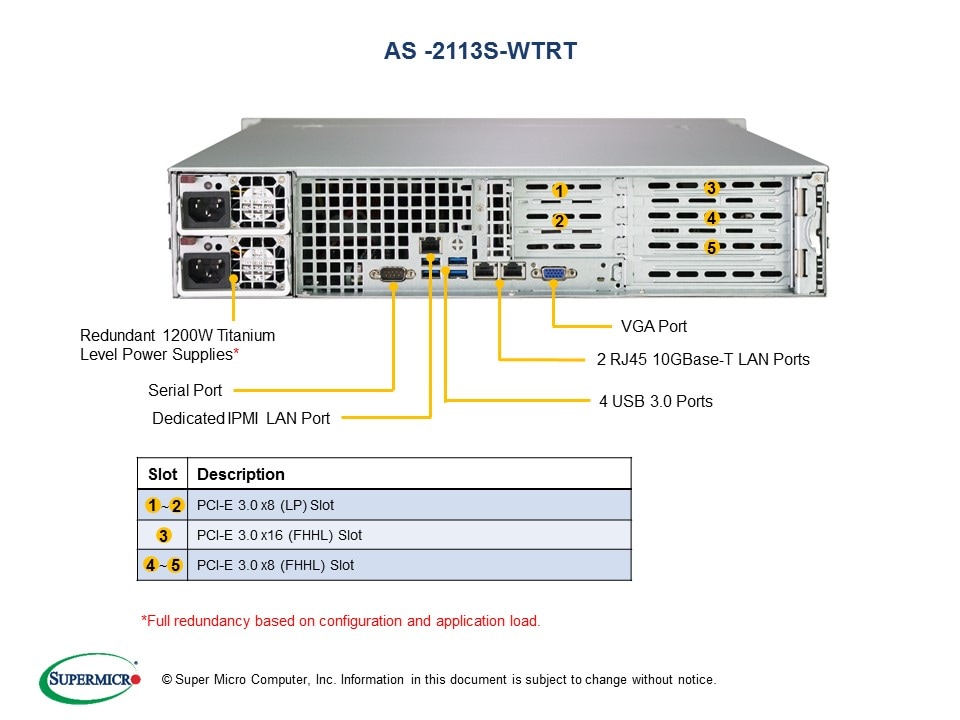

| Front View | Rear View |


Key Features
• Backup Storage
• Web or Database Servers
• Compact Network Appliance

1. Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
3. Expansion slots:
1 PCI-E 3.0 x16 (FH/HL) slot,
2 PCI-E 3.0 x8 (FH/HL) slots,
2 PCI-E 3.0 x8 (LP) slots
M.2 Interface: PCI-E 3.0 x2 (NVMe based)
M.2 Form Factor: 2280, 22110
M.2 Key: Onboard M-key
Number of M.2: Dual
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. 2x 10GBase-T LAN ports via Broadcom BCM57416
6. 16 hot-swap 2.5" SATA3 drive bays,
or 10 hot-swap 2.5" SATA3 drive bays + optional 6 U.2 NVMe drive support with additional cables
7. 1200W Redundant Power Supplies
Titanium Level (96%)
(Full redundancy based on configuration and application load)

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options


Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
AS -2113S-WTRT
  • A+ Server 2113S-WTRT
Motherboard
H11SSW-NT
Processor/Chipset
CPU
  • Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
  • Socket SP3
  • Supports CPU TDP 225W / cTDP up to 240W*
Cores
  • Up to 32 Cores (Board revision 1.x + 7001 Processors)
  • Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
  • System on Chip (SoC)
System Memory
Memory Capacity
  • 16 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
    (* Board revision 2.x required + 7002 Processors)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Broadcom BCM57416 Controller
VGA
  • ASPEED AST2500 BMC
Expansion Slots
PCI Express
  • 1 PCI-E 3.0 x16 (FH/HL) slot
  • 2 PCI-E 3.0 x8 (FH/HL) slots
  • 2 PCI-E 3.0 x8 (LP) slots
M.2
  • Interface: PCI-E 3.0 x2 (NVMe based)
  • Form Factor: 2280, 22110
  • Key: Onboard M-key
  • Number of M.2: Dual
Input / Output
NVMe
  • Up to 6 U.2 NVMe support via additional cables
SATA
  • 16 SATA3 (6 Gbps) ports
LAN
  • 2x 10GbBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (4 rear + 1 Type A)
VGA
  • 1 VGA port
Others
  • 1 COM port
  • 2 SATA DOM power connectors
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 2U
Model
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 24.8" (630mm)
Package
  • 11" (H) 29" (W) 38.7" (D)
Weight
  • Net Weight: 34 lbs (15.42 kg)
  • Gross Weight: 59 lbs (26.76 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • 16 hot-swap 2.5" SATA3 drive bays
  • Optional 6 U.2 NVMe drive support with additional cables
Peripheral Drives
Optional
  • Optional slim DVD-ROM drive
Backplane
Hybrid Backplane
  • Supports up to 8x 2.5" SAS3/SATA3 HDD/SSD and 6x SAS3/SATA3/NVMe Storage Devices
System Cooling
Fans
  • 3 heavy-duty PWM fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 6-fan status tachometer monitoring
  • Up to six 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 6x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H11SSW-NT 1 Super H11SSW-NT Motherboard
Chassis CSE-213AC8-R1K23WB 1 2U Chassis
HD Backplane BPN-SAS3-213A-N8 1 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
Cable(s) CBL-SAST-0832 2 SLIMLINE SAS x8 (LA) to 2x MINI SAS HD x4,INT, 70CM,32AWG
Riser Card RSC-R2UW-2E8E16+ 1 RSC-R2UW-2E8E16+-O-P
Riser Card RSC-R2UW-2E8R 1 2U RHS WIO Riser card with two PCI-E x8 slots
Heatsink / Retention SNK-P0063P 1 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management

Optional Parts List
Part Number Qty Description
Peripheral Drive DVM-PNSC-824B - Black slim IDE DVD (8x DVD, 24x CDR), Panasonic
Optional Kit for 6 U.2 NVMe drive solution MCP-220-00127-0B 6 Black gen-3 2.5" NVMe drive tray, Orange tab with lock (for hotswap NVMe drive)
CBL-SAST-0816 1 SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 28CM,34AWG
CBL-SAST-0817 3 SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 36CM,34AWG
Storage Controller card & cable AOC-S3008L-L8e
& 2x CBL-SAST-0535
AOC-S3008L-L8i
& 2x CBL-SAST-0535
AOC-S3108L-H8iR
& 2x CBL-SAST-0535
-

-

-

Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
MINI SAS HD,12G,INT,70CM,30AWG
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
MINI SAS HD,12G,INT,70CM,30AWG
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
MINI SAS HD,12G,INT,70CM,30AWG
CacheVault BTR-TFM8G-LSICVM02
& BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02
& MCP-240-00127-0N
-

-

CacheVault for Broadcom 3108,
Supercap mounting bracket for PCI-E location
CacheVault for Broadcom 3108,
Supercap mounting bracket for 2.5" HDD location
Cable Management Arm MCP-290-00073-0N
MCP-120-82503-0N
- Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Cable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
