A+ Server 1114S-WTRT

A+ Products Systems 1U [ 1114S-WTRT ]





Integrated Board
Super H12SSW-NT

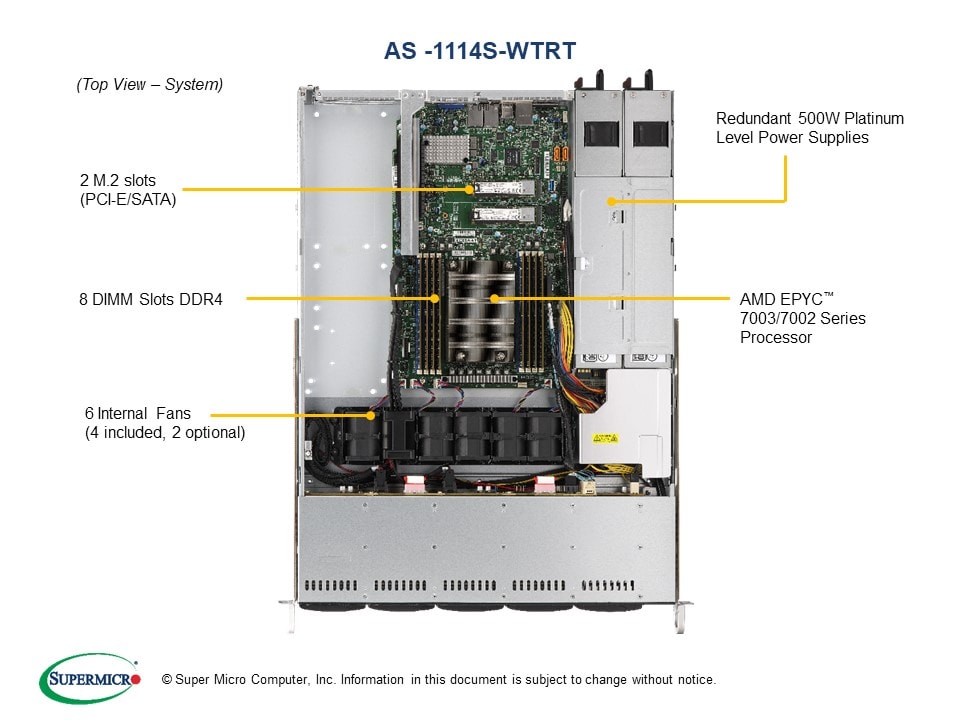

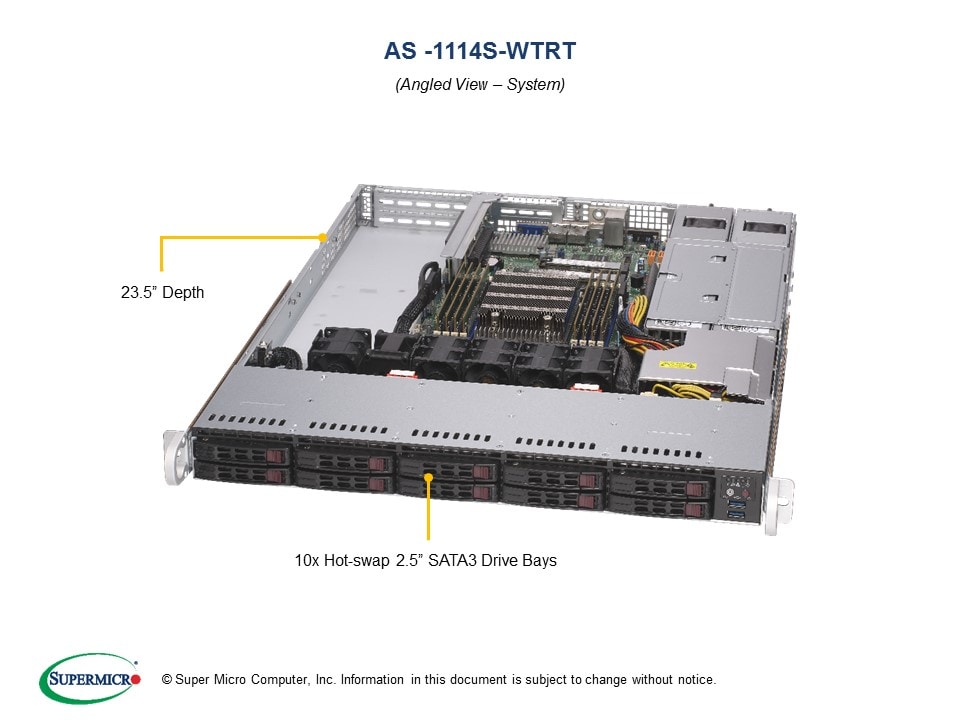

Views: | Angled View | Top View |
| Front View | Rear View |

Key Features
• DB Processing & Storage
• Data Center Applications
• Firewall Applications

1. Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8 DIMMs; up to 2TB 3DS ECC
DDR4-3200MHz RDIMM/LRDIMM
3. 2 PCI-E 4.0 x16 (FHFL) slots,
1 PCI-E 4.0 x16 (LP) slot
4. Integrated IPMI 2.0 + KVM with 
dedicated LAN
• Software Out of Band License key
   (SFT-OOB-LIC) included for
   OOB BIOS management
5. 10 Hot-swap 2.5" SATA3 drive bays,
Optional 2 U.2 NVMe (PCI-E 3.0)
drive support via additional kit for
NVMe devices
6. 2x 10GBase-T LAN ports via
Broadcom BCM57416 Controller
7. 1 VGA,
7 USB 3.0 (4 rear, 2 front, 1 Type A)
8. 2 SuperDOM (Disk on Module) ports
9. 500W Redundant Power Supplies
Platinum Level High-efficiency
(Full redundancy based on
configuration and application load)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List  NVMe Options Tested AOC  Manuals  OS Certification Matrix Compatible GPU List  Quick-References Guide  Drive Options  Datasheet

Product SKUs
AS -1114S-WTRT
  • Standard version with PWS-504P-1R (Platinum Level)
AS -1114S-WTRT-EU
  • European version with PWS-601A-1R (Titanium Level)

Motherboard

Super H12SSW-NT

Processor/Cache
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Support CPU TDP up to 280W
Cores
  • Up to 64 Cores

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 2 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R504WBP2

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 23.5" (597mm)
Package
  • 7.63" (H) 23.42" (W) 31.45" (D)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHFL) slots
  • 1 PCI-E 4.0* x16 (LP) slot
  • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
  •
    * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.

Drive Bays
Hot-swap
  • 10 Hot-swap 2.5" SATA3 drive bays
  • Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC

Power Supply
500W Redundant Power Supplies with PMBus
Note: AS -1114S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level)
Total Output Power
  • 500W
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100-240Vac, 50-60Hz, 6.1-2.6A
+12V
  • Max: 42A / Min: 0.5A
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification Platinum Level Certified   Platinum Certified
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-H12SSW-NT
CSE-116TS-R504WBP2
1
1
Super H12SSW-NT Motherboard
1U Chassis
Cable CBL-SAST-0803 1 SLIMLINE SAS x8 (LE) to 2x MINI SAS HD x4,INT, 37/30CM,
Cable CBL-SAST-0813 1 SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG,RoHS
Backplane BPN-SAS3-116A-N2 1 10-Port 1U Backplane for 8x2.5" SAS3/SATA3 HDD/SSD and 2xSAS2/SATA3 HDD/SSD or NVMe SSD
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Heatsink / Retention SNK-P0062P 1 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Power Supply PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide
Power Distributor PDB-PT112-S2424 1 WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
FAN FAN-0141L4 4 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Parts MCP-240-00099-0N 1 1U WIO riser card bracket for SC113, SC815, SC119, SC819
Drive Tray(s) MCP-220-00047-0B 10 Black gen 3rd hot-swap 2.5inch HDD tray
Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS
Rail Set MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Optional Parts List
  Part Number Qty Description
Optional Kit for 2 U.2 NVMe Drive Support CBL-SAST-0826
MCP-220-00167-0B
1
2
SLIMLINE SAS x8 (LE) to 2x MINI SAS HD,INT, 70CM,32AWG
Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
Cooling Fan FAN-0141L4 2 440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan
Storage Controller card & cable AOC-S3108L-H8iR
CBL-SAST-0593
FAN-0141L4
AOC-S3108L-H8iR-16DD

CBL-SAST-0593
FAN-0141L4
AOC-S3008L-L8i
CBL-SAST-0593
FAN-0141L4
AOC-S3008L-L8e
CBL-SAST-0593
FAN-0141L4
1
2
2
1

2
2
1
2
2
1
2
2
Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
MINI SAS HD,12G,INT,60CM,30AWG
440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan
Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
MINI SAS HD,12G,INT,60CM,30AWG
440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD, RAID 0, 1, 10
MINI SAS HD,12G,INT,60CM,30AWG
440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD HBA
MINI SAS HD,12G,INT,60CM,30AWG
440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan
CacheVault BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 &
BKT-BBU-BRACKET-05
-
-
CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray
CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
Front Bezels MCP-210-11601-0B 1 Black front bezels
Cable Management Arm MCP-290-00085-0N - Supermicro Cable Management Arm for 1U Chassis
GPU Kit MCP-310-81504-0B
FAN-0141L4
1
2
SC815 and SC116 with X11SPW & H12SSW for Tesla T4,RoHS
440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan
TPM security module AOM-TPM-9655V
AOM-TPM-9665V
-
-
Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
SATADOM SSD-DM128-SMCMVN1
SSD-DM480-SMCMVN1
SSD-DM064-SMCMVN1
SSD-DM032-SMCMVN1
MEM-IDSAVS4-032G
MEM-IDSAVM8A-128G
MEM-IDSAVM8A-256G
MEM-IDSAVE1-064G
MEM-IDSAVS3-032G
MEM-IDSAVT1-256G
-
-
-
-
-
-
-
-
-
-
SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
