SuperServer 5028D-TN4T

  Products  Systems  Mini-Tower   [ 5028D-TN4T ]





Integrated Board
X10SDV-TLN4F

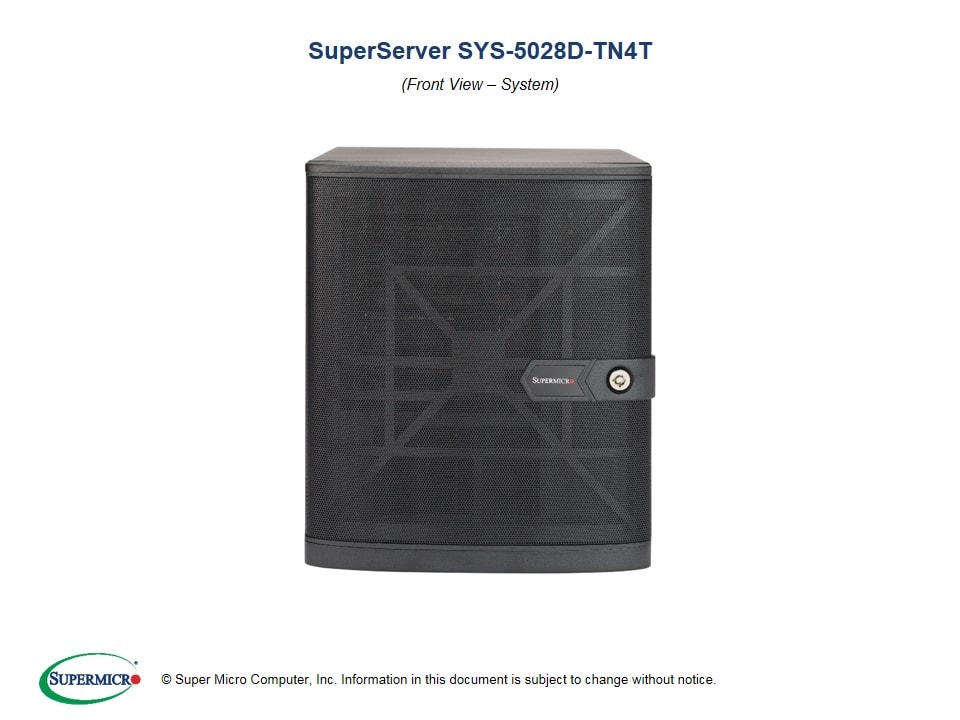

Views: | Front View | Rear View |

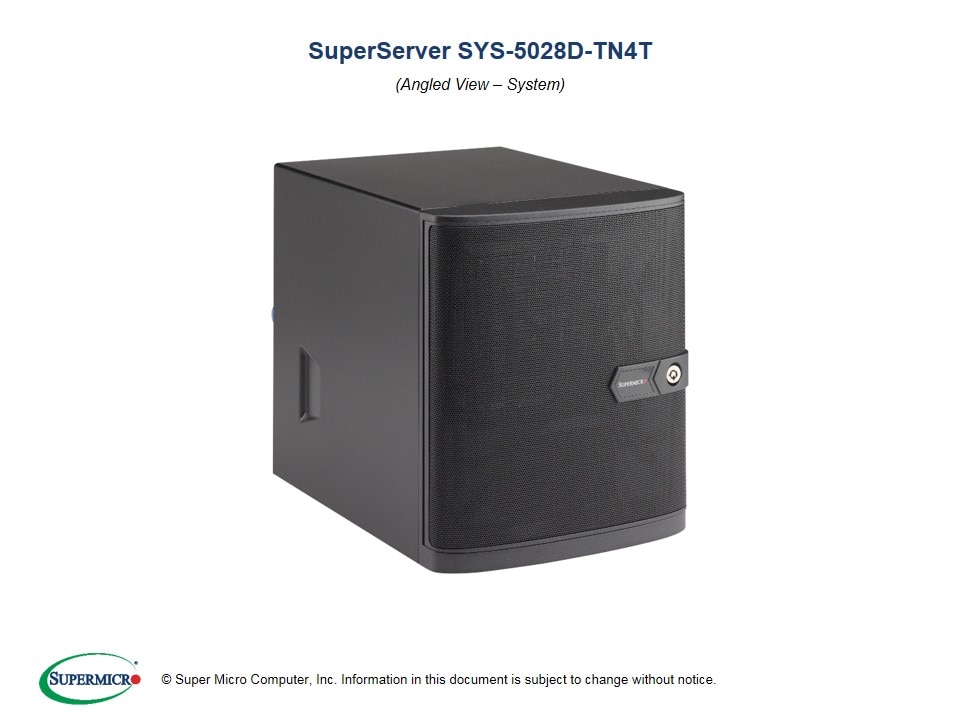

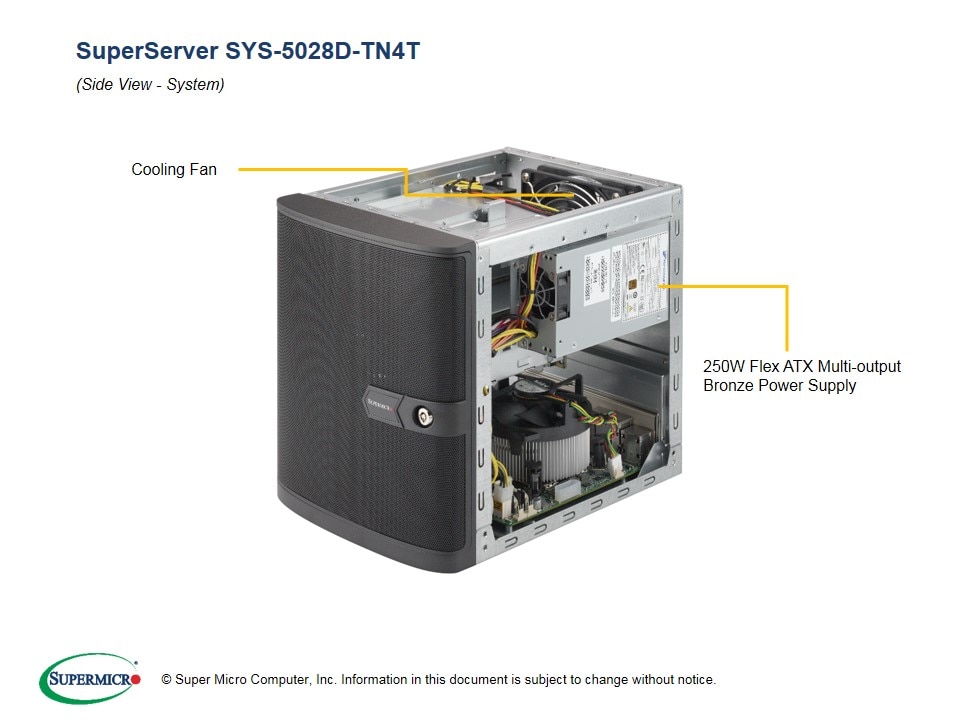

| Angled View | Side View | Side View |

Key Features
• Space-efficient, compact design
• Network Security Appliance
• Cloud and Virtualization
• High Performance NAS Servers
• Business Critical Applications
• Small and Medium Business
• SR-IOV supported (for Xeon D-1541)

1. Intel® Xeon® processor D-1541,
    Single socket FCBGA 1667;
    8-Core, 45W
2. 4x 3.5" Hot-swap drive bays;
    2x 2.5" fixed drive bays
3. 1x PCI-E 3.0 x16 (LP), 1x M.2
    PCI-E 3.0 x4, M Key 2242/2280
4. Up to 128GB ECC RDIMM DDR4
    2400MHz or 64GB ECC/non-ECC
    UDIMM in 4 sockets
5. Dual 10GbE LAN and Intel® i350-AM2
    dual port GbE LAN
6. 250W Flex ATX Multi-output Bronze
    Power Supply

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SYS-5028D-TN4T
  • SuperServer 5028D-TN4T (Black)

Motherboard

Super X10SDV-TLN4F

Processor/Cache
CPU
  • Intel® Xeon® processor D-1541
  • FCBGA 1667 supported
  • CPU TDP support 45W
  • System-on-Chip

System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 128GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2400/2133/1600/1333MHz ECC DDR4 SDRAM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices
SATA
  • SoC controller for SATA3 (6Gbps) ports
Network Controllers
  • Dual LAN via Intel® i350-AM2 Gigabit Ethernet
  • Dual LAN via SoC 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-T, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • BMC integrated ASPEED AST2400

Input / Output
SATA
  • 6x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
  • 2x USB 2.0 ports (front panel)
Serial Port
  • 1x COM port (header)
DOM
  • 1x SATA DOM (Disk on Module) power connector
VGA
  • 1x VGA Port
Others
  • TPM 2.0 header

Management
Software
  • Intel® Node Manager
  • IPMI (Intelligent Platform Management Interface) 2.0 with KVM support
  • SuperDoctor® 5
  • Watch Dog
  • NMI
  • SUM
Chassis
Form Factor
  • Mini Tower
Model

Dimensions and Weight
Height
  • 9.45" (240mm)
Width
  • 8.27" (210mm)
Depth
  • 11" (279mm)
Weight
  • Gross Weight: 15 lbs (6.8 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED

Expansion Slots
PCI-E
  • 1x PCI-E 3.0 x16 (Low Profile) slot
  • 1x M.2 PCI-E 3.0 x4, M Key 2242/2280

Drive Bays
HDD
  • 4x 3.5" Hot-swap drive bays
  • 2x 2.5" internal drive bays
Peripheral
  • 1x slim DVD-ROM drive bay (shared with 1x 2.5" internal drive bay)

Power Supply
250W Flex ATX Multi-output Bronze Power Supply
AC Voltage
  • 100 - 240V, 50 - 60Hz
+5V
  • Max:14 Amp; Min:0.5 Amp
+12V
  • Max:18 Amp; Min:1 Amp @100V-240V
-12V
  • Max: 0.3 Amp
+3.3V
  • Max: 12 Amp Min: 0.3Amp
5VSB
  • Max: 2.5 Amp
Certification 80 PLUS   Bronze Certified

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI
  • RTC (Real Time Clock) Wakeup

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
       -20°C to 60°C (-4°F to 140°F)
  • Operating Relative Humidity:
       10% to 85% (non-condensing)
  • Non-operating Relative Humidity:
       10% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SDV-TLN4F
CSE-721TQ-250B
1
1
Super X10SDV-TLN4F Motherboard
2U Chassis
Air Shroud MCP-310-00076-0B 1 SYS-5028 series Mylar Air Shroud,RoHS/REACH
Backplane CSE-SAS-733TQ 1 4x3.5\" SAS2/SATA3 backplane w/SES-II
Cable 1 CBL-0483L 1 SATA,INT,ROUND,ST-ST,29CM,30AWG
Cable 2 CBL-0473L 4 SATA,INT,ROUND,ST-ST,21CM,30AWG
Cable 3 CBL-0157L 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
Parts MCP-260-00084-0N 1 Standard I/O Shield for A1SRM-LN7F with EMI Gasket,RoHS/REACH
Power Supply PWS-251-1H 1 1U 250W Flex ATX Multi-output Bronze Power Supply

Optional Parts List
  Part Number Qty Description
DVD-RW DVM-TEAC-DVDRW-SBT3 - BLACK TEAC SLIM DVD-RW SATA DRIVE,HF,RoHS/REACH,PBF
DVD Kit MCP-220-81502-0N - Slim SATA DVD kit
Power Cable CBL-PWEX-0645 - Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
Hide Parts List
