SuperServer 6028UX-TR4 (Complete System Only)

  Products  Systems   Hyper-Speed (Low-latency)   [ 6028UX-TR4 ]





Integrated Board
Super X10DRU-X

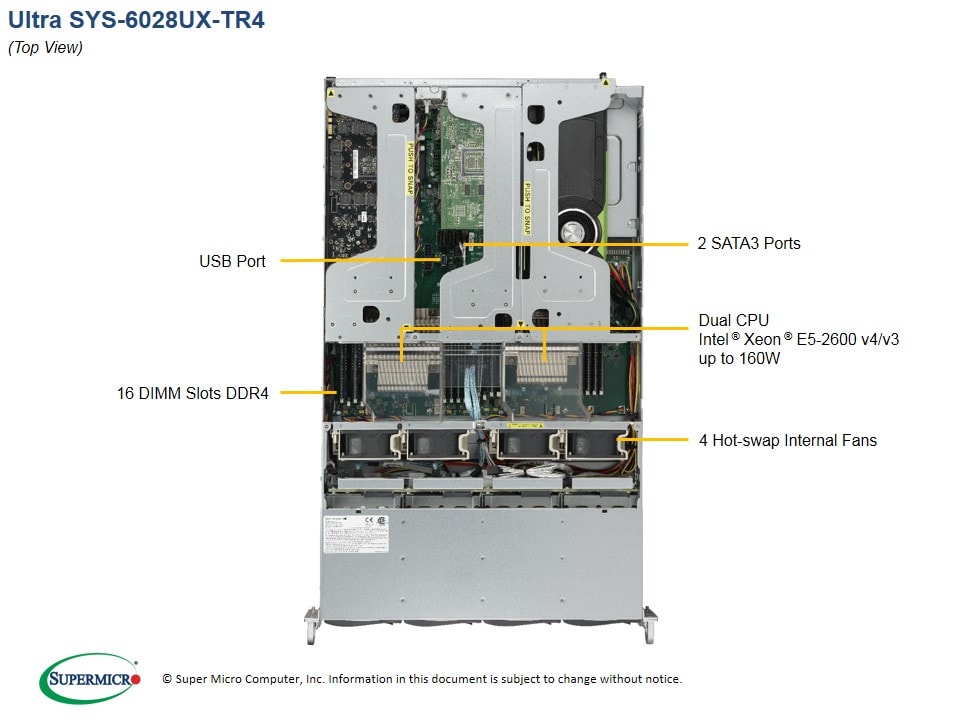

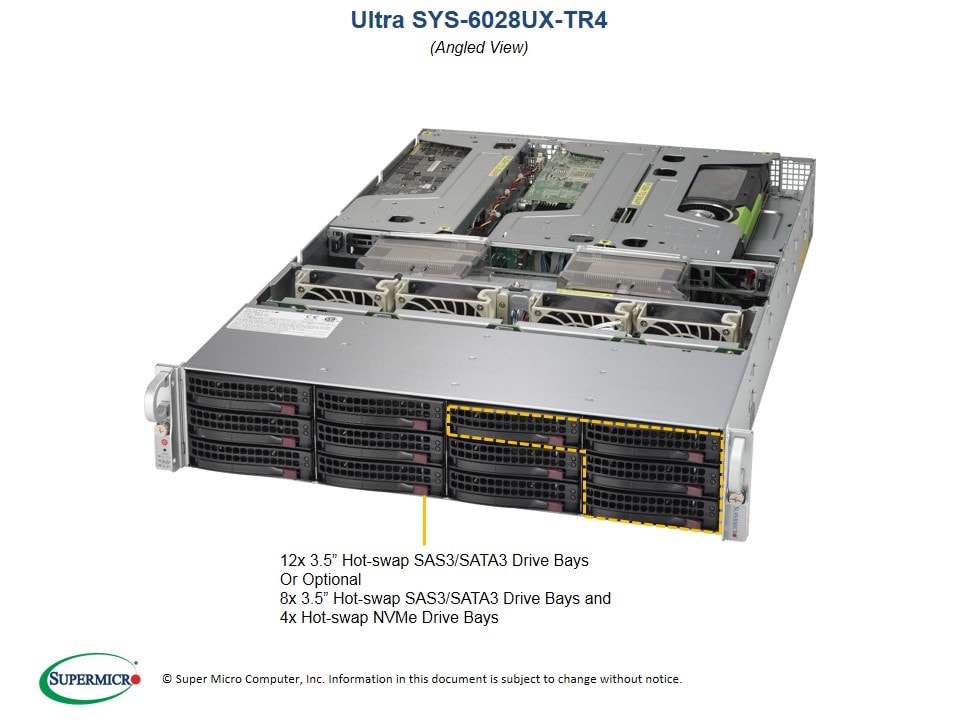

Views: | Angled View | Top View |

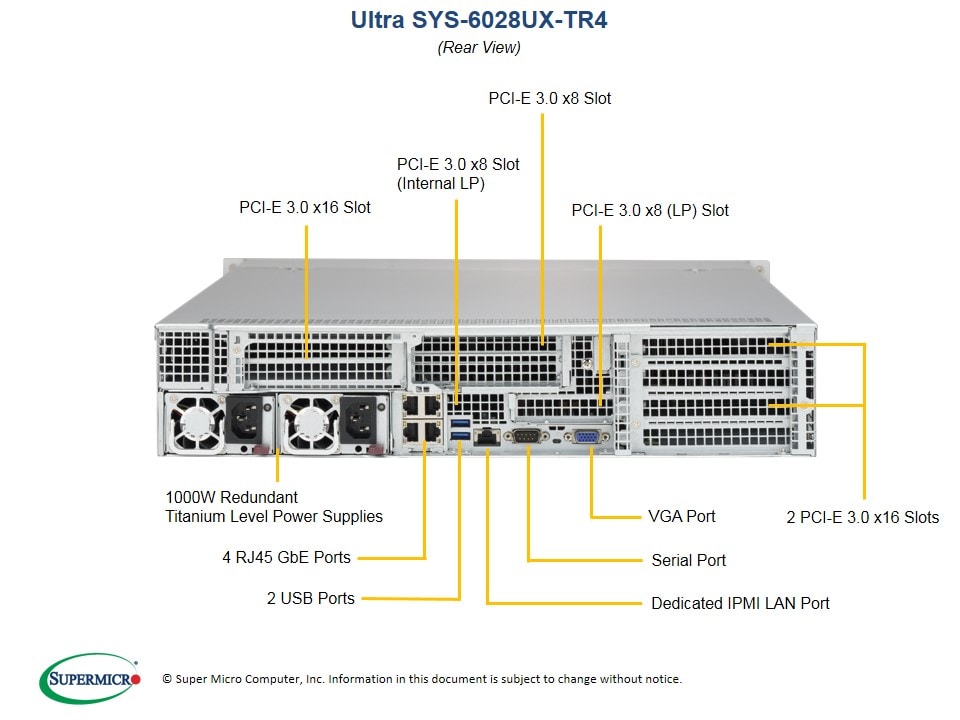

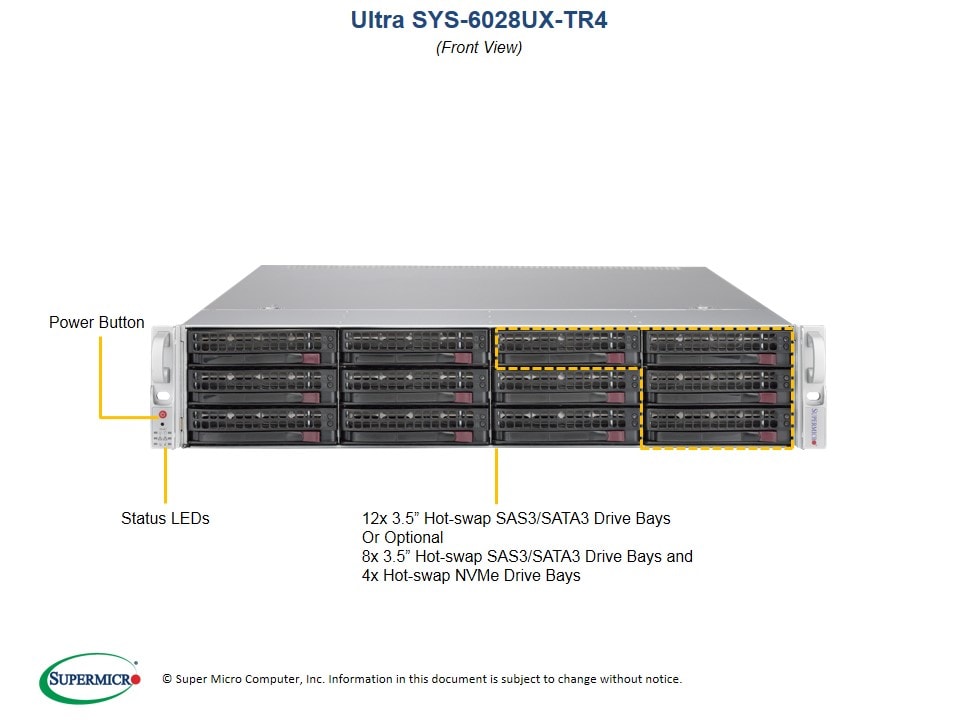

| Front View | Rear View |

Key Features
• Support Hyper-Speed
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 3x PCI-E 3.0 x16 slot (FH, 10.5" L),
    3x PCI-E 3.0 x8 slots (1 in x16 FH
    10.5" L, 1 LP, 1 Internal LP)
4. 4x Gigabit Ethernet ports
5. 12x Hot-swap 3.5" Drive Bays:
    SATA3 default, 12x SAS3 opt.
    4x NVMe opt. via AOC
6. 4x heavy duty fans w/ optimal
    fan speed control
7. 1000W High efficiency (96%)
    Redundant PSU; Titanium Level

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory at Hyper-Speed  Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-6028UX-TR4
  • SuperServer 6028UX-TR4 (Black)

Motherboard

Super X10DRU-X

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Connectivity
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
SAS
  • 12x SAS3 ports support via optional Add-on Card
NVMe
  • 4x NVMe ports support via optional Ultra Riser card (AOC-2UR8N4-i2XT)
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports
    (2 rear, 2 onboard header, 1 Type A)
Video
  • 1x VGA Connector
Serial Port / Header
  • 1x Serial header
DOM
  • 2x SuperDOM (Disk on Module) ports

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829UTS-R1K02P

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (647mm)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 3x PCI-E 3.0 x16 slot (FH, 10.5" L)
  • 3x PCI-E 3.0 x8 slots
    (1 in x16 FH 10.5" L, 1 LP, 1 Internal LP)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 12x Hot-swap 3.5" Drive Bays:
    10x SATA3 ports by default
  • Optional SAS3 support: 12x SAS3
  • Optional NVMe support: 4x NVMe via AOC-2UR8N4-i2XT (2x 10GBase-T ports)


  • Note: optional storage card is required to support more than 10 drives.

Backplane
2U SAS/SATA backplane

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
  • 1000W: 200 – 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRU-X
CSE-829UTS-R1K02P
1
1
Super X10DRU-X Motherboard
2U Chassis
Add-on Card / Module AOC-2UR68-I4G-P 1 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot)
Air Shroud MCP-310-82913-0N 1
Backplane BPN-SAS3-826A-N4 1 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-SAST-0655 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
Cable 2 CBL-SAST-0657 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
Cable 3 CBL-PWEX-0652 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 60/65CM, 18AWG,RoHS/REACH
Cable 4 CBL-PWEX-0673 1 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
Cable 5 CBL-SAST-0631 1 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1706-QRG 1 QRG for SYS-6028UX-TR4,HF,RoHS/REACH
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Riser Card RSC-W2-66 1 RSC-W2-66
Heatsink / Retention SNK-P0058PU 2 2U Passive CPU Heat Sink for X10 2U 16-DIMM Ultra Series Servers,RoHS/REACH
Parts MCP-240-82911-ASM-OEM 1 GPU kit for SC829U, 219U, Tool-less
Power Supply PWS-1K02A-1R 2 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH


Optional Parts List
  Part Number Qty Description
Storage Control Card and Cable(s) AOC-S3008L-L8e

AOC-S3008L-L8i

AOC-S3108L-H8iR
- Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STG-b4S
AOC-STG-i2T
AOC-STG-i2
AOC-S40G-i2Q
More
-
-
-
-
-
-
-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N
-
-
-

CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black hot-swap 3.5" to 2.5" HDD tray
Converter Tray MCP-220-00118-0B - Black gen-5.5 tool-less hot-swap 3.5" to 2.5" converter tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
