 Networking Solutions
|
Supermicro Layer 2 Ethernet Switches Keep IT Green
Supermicro extends its "We Keep IT Green®" initiative with a pair of powerful 52-port 1-Gigabit-per-second Energy-Efficient-Ethernet switches. The SSE-G2252 and its companion SSE-G2252P each provide 48 ports of 1-Gbps Ethernet connectivity with RJ45 connections as well as an additional four 1Gbps ports with SFP connectors. The SSE-G2252P model also offers support of IEEE-802.3at-compliant Power-over-Ethernet (PoE) devices with what is perhaps the most flexible power budget allocation in the industry. Up to 30 Watts can be supplied on any RJ45 port (subject to a maximum PoE budget of 400 Watts), thus making the SSE-G2252P capable of supporting the broadest range of commercial PoE devices . Both support the latest Energy Efficient Ethernet standard (IEEE 802.3az).
These Layer 2 switches offer extremely cost-effective networking in SMB or data center environments. They provide a choice of management interfaces using either a Web-based GUI or an industry compatible command-line-interface. The PoE model makes possible rapid installation of PoE-based wireless access points for conferences and shows, support for VoIP phones, as well as PoE surveillance cameras and a myriad of new PoE devices becoming available on the market.
The SSE-G2252 and SSE-G2252P also offer a full range of popular Ethernet features like Jumbo Frames, Link Aggregation, VLANs, and Quality of Service. All of this is done in a compact 1U form factor for maximum flexibility in rack-mount installation.
 |
|
SSE-G2252 (52 ports) NEW
• 48 RJ45 10/100/1000 ports and
• 4 SFP 1G ports
• Non-blocking connectivity
• Standard Layer 2 Features:
• IPV4 and IPv6, QoS, 256VLANs
• Link Aggregation and Jumbo Frame Support up to 9KB
• RJ45 Console Port: Web Management GUI, CLI
• Energy Efficient Ethernet (802.3az)
• Power supply: 65W (83% efficiency)
• 1U form factor for flexible installation
• Dimensions (W x D x H): 440mm x 379mm x 43mm
• Weight: 6.8 lbs / 3.1 kg
 |
 |
|
SSE-G2252P (52 ports; 48 w/ Power-over-Ethernet) NEW
• 48 RJ45 10/100/1000 ports and
• 4 SFP 1G ports
• Non-blocking connectivity
• Standard Layer 2 Features:
• IPV4 and IPv6, QoS, 256VLANs
• Link Aggregation and Jumbo Frame Support up to 9KB
• RJ45 Console Port: Web Management GUI, CLI
• Energy Efficient Ethernet (802.3az)
• Power-over-Ethernet (802.3at)
- Up to 30W per port / Up to 400W total PoE budget
• Power supply: 500W (87% efficiency)
• 1U form factor for flexible installation
• Dimensions (W x D x H): 440mm x 379mm x 43mm
• Weight: 11.7 lbs / 5.3 kg
|
|
|
Layer 3 Ethernet Switches [
Quick Reference Guide ]
Enterprise-Class Performance with Advanced switching capabilities in a 1U form factor. Highly cost-effective 1/10-Gigabit, 10-Gigabit Ethernet and 10/40-Gigabit Ethernet Networking - Standalone or Top-of-Rack.
The Supermicro 1/10-Gigabit Layer 3 Ethernet Switches offer aggregation of 24 or 48 ports of 10/100/1000 BASE-T Gigabit Ethernet onto up to four 10-Gigabit Ethernet uplinks. This allows connectivity to 10GE routers, servers, backbones, and data centers. In addition, the 10-Gigabit models provide top-of-rack data-center friendly interconnection for high-speed server and storage systems as well as access to corporate or data center backbone networks. The 10-Gigabit switches provide high-speed connectivity between high-capacity servers and backbone networks. And the latest series of 10/40 Gigabit Ethernet switches take data center networking to a new level of performance.
The 1U form factor gives users the ability to optimize deployment in wiring closet or top-of-rack environments. A comprehensive routing and protocol software suite ensures optimal performance in even the most demanding enterprise-class networking environments. It is ideal for organizations with growing and consolidated data centers. Supermicro Blade server customers will further appreciate the common set of features and a management interface that matches those of the Supermicro 1/10G Layer 3 Ethernet Switch for the Blade.
 |
|
SSE-X3348T / SSE-X3348TR (54 ports) NEW
• 48x ten-Gigabit Ethernet ports - 10GBase-T
• 4x forty-Gigabit Ethernet ports - QSFP
• 2x one-Gigabit Ethernet ports - RJ45
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• Energy Efficient Ethernet (IEEE 802.3az)
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces
|
 |
|
SSE-X3348S / SSE-X3348SR (54 ports) NEW
• 48x ten-Gigabit Ethernet ports - SFP+
• 4x forty-Gigabit Ethernet ports - QSFP
• 2x one-Gigabit Ethernet ports - RJ45
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces
|
 |
|
SSE-X24S / SSE-X24SR (24 ports)
• 24x ten Gigabit Ethernet ports
• Switching Capacity: 480Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces
|
 |
|
SSE-G24-TG4 (24 ports)
• 24x one Gigabit Ethernet links
- 24 RJ45 Copper ports and
- 4 RJ45/SFP Combo ports
• Switching Capacity: 136Gbps
• Wire-speed Layer 3 Routing
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces
|
 |
|
SSE-G48-TG4 (48 ports)
• 48x one Gigabit Ethernet links
- 48 RJ45 Copper ports and
- 4 RJ45/SFP Combo ports
• Switching Capacity: 184Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces
|
|
|
Network Adapters [ top ]
With outstanding performance, high power efficiency and excellent value, Supermicro's network adapters can help improve network throughput and application performance through features that maximize bandwidth and offload CPU resources. From 10Gb Ethernet to InfiniBand technologies, dual-port and quad-port connectivity, in UIO (Universal I/O) and standard form factors, Supermicro's network adapters are optimized for the most demanding multi-core computing systems.
Adapter SKUs
- Display All
Display by Type |
GbE |
10GbE |
IB |
or by Form Factor |
UIO |
MicroLP |
Standard |
 |
|
AOC-STG-b4S NEW
• Standard Low-profile 10GbE LAN card
• Interface: PCI-E 3.0 x8 (8GT/s)
• Port: 4x SPF+ ports
• Speed: 10Gbps
• Controller: Broadcom® BCM57840S
|
 |
|

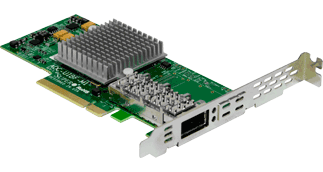

AOC-UIBF-m1 NEW
• UIO Single-port InfiniBand FDR card
• Interface : PCI-E 3.0 x8 (8GT/s)
• Port : 1x QSFP connector
• Speed : Up to 56Gbps InfiniBand or 40Gbps Ethernet
• Controller : Mellanox® ConnectX-3 FDR
|
 |
|
AOC-CTG-i2S NEW
• MicroLP 10 GbE LAN card
• Interface : PCI-E 2.0 x8 (5GT/s)
• Port : 2x SFP+ and 2x USB 2.0 ports
• Speed : 10Gbps
• Controller : Intel® 82599ES 10GbE controller
|
 |
|
AOC-CTG-i1S NEW
• MicroLP 10 GbE LAN card
• Interface : PCI-E 2.0 x8 (5GT/s)
• Port : 1x SFP+ and 2x USB 2.0 ports
• Speed : 10Gbps
• Controller : Intel® 82599EN 10GbE controller
|
 |
|
AOC-CIBQ-m1 NEW
• MicroLP InfiniBand QDR card
• Interface : PCI-E 3.0 x8 (8GT/s)
• Port : 1x QSFP connector + 2x USB 2.0 ports
• Speed : Up to 40Gbps InfiniBand or 10Gbps Ethernet
• Controller : Mellanox® ConnectX-3 QDR
|
|
|
AOC-CIBF-m1 NEW
• MicroLP InfiniBand FDR card
• Interface : PCI-E 3.0 x8 (8GT/s)
• Port : 1x QSFP connector + 2x USB 2.0 ports
• Speed : Up to 56Gbps InfiniBand or 40Gbps Ethernet
• Controller : Mellanox® ConnectX-3 FDR
|
 |
|
AOC-CGP-i2 NEW
• MicroLP dual-port GbE LAN card
• Interface : PCI-E 2.1 x4
• Port : 2 RJ-45 ports
• Speed : 1Gbps per port
• Controller : Intel® i350
|
 |
|
AOC-E10GSFPSR
• SFP+ Transceiver 1000Base-SX/10GBase-SR plug-in module
• Cabling Type: MMF 62.5/50µm
• Products Supported: 10Gb Ethernet Controller with SFP+
|
 |
|
AOC-UIBQ-M2
• UIO Low-profile Dual-Port 40Gb InfiniBand card
• Interface: PCI-E 2.0 x8
• Port: 2 QSFP ports
• Speed: 40Gbps per port
• Controller: Mellanox® ConnectX®-2 QDR
|
 |
|

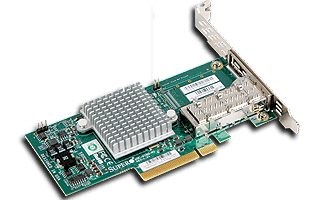

AOC-UIBQ-M1
• UIO Low-profile Single-Port 40Gb InfiniBand card
• Interface: PCI-E 2.0 x8
• Port: 1 QSFP port
• Speed: 40Gbps per port
• Controller: Mellanox® ConnectX®-2 QDR
|
 |
|
AOC-UINF-m2
• UIO Low-profile Dual-Port 20Gb InfiniBand card
• Interface: PCI-E 2.0 x8
• Port: 2 CX4 ports
• Speed: 20Gbps per port
• Controller: Mellanox® ConnectX DDR
|
 |
|
AOC-UTG-i2
• UIO full-height Dual-Port 10Gb Ethernet card
• Interface: PCI-E x8
• Port: 2 CX4 ports
• Speed: 10Gbps per port
• Controller: Intel® 82598EB
|
 |
|
AOC-UG-i4
• UIO full-height Quad-Port 1Gb Ethernet card
• Interface: PCI-E x8
• Port: 4 RJ45 ports
• Speed: 1Gbps per port
• Controller: 2x Intel® 82571EB
|
 |
|
AOC-PG-i2+
• Proprietary low-profile Dual-Port 1Gb Ethernet card
• Interface: PCI-E x8
• Port: 2 RJ45 ports
• Speed: 1Gbps per port
• Controller: Intel® 82576EB
|
 |
|
AOC-EXPX9502FXSR (EOL)
• Standard low-profile Dual-Port 10Gb Ethernet card
• Interface: PCI-E x8
• Port: 2 XFP ports
• Speed: 10Gbps per port
• Controller: Intel® 82598EB
|
|
|
| |
SuperBlade®
1/10 Gigabit Ethernet Switch
SBM-GEM-X2C+
Gigabit Ethernet Switch
SBM-GEM-001
10 Gigabit Ethernet
Pass-Thru Module
SBM-XEM-002
Gigabit Ethernet
Pass-Thru Module
SBM-GEM-002
InfiniBand Switch
SBM-IBS-001
|
