Supermicro Servers Support PCI-E SSD Solutions

Samsung NVMe SSDs

Delivering reliable computing and storage resources that reduce the total cost of ownership (TCO) has been a struggle for data center architects. In order to minimize costs, data center servers require high levels of I/O performance and high system density. More importantly, the storage systems supplying that I/O performance need to deliver consistence performance and latency 24/7, 365 days a year. In the face of these challenges, IT and data managers must find storage solutions that can keep up with their demands.

Samsung has been an industry leader in NVMe SSDs, delivering the advantages of industry standard NVMe performance longer than anyone else. Leveraging the advantage of being a vertically integrated supplier of SSDs, Samsung has provided the highest levels of quality. The Samsung PM983 SSD allows data center architects to achieve reliable, high storage capacity that delivers on performance.

PM983

PM983 delivers four times the performance of SATA SSDs, using Samsung 3D V-NAND and an optimized Samsung NVMe controller with native PCIe Gen 3.0 x4 host interface that supplies 32GB/s of bandwidth. It is also 1,000 times faster than an SAS HDD in random read/write and three times better performing than a 2.5-inch SAS SSD. PM983 achieves the same low cost per gigabyte as slower SATA SSDs. By providing four times the IOPS per dollar, IT and data center managers are able to scale workload utilization on their servers, decreasing the cost of computing.

Find the product that best fits your density and performance needs from three separate form factors.

M.2: Designed for Flexibility

The ultra-small form factor of the Samsung SSD PM983 (M.2) allows for more efficient storage density, allowing you to shrink your footprint, even for high-performance computing, and significantly reduce your total cost of ownership.

Samsung M.2
SMCI P/NManufacturer P/NDescription
HDS-SMN1-MZ1LB960HAJQ07MZ1LB960HAJQ-00007Samsung PM983 960GB NVMe PCI-E 3.0 x4 V4 M.2 22x110mm (1.3 DWPD)
HDS-SMN1-MZ1LB1T9HALS07MZ1LB1T9HALS-00007Samsung PM983 1.92TB NVMe PCI-E 3.0 x4 V4 M.2 22x110mm (1.3 DWPD)
HDS-SMN1-MZ1LB3T8HMLA07MZ1LB3T8HMLA-00007Samsung PM983 3.84TB NVMe PCI-E 3.0 x4 V4 M.2 22x110mm (1.3 DWPD)

U.2 (2.5"): High Capacity, High Performance

PM983 (U.2) delivers performance of up to 540K IOPS for random 4KB read and up to 50K IOPS for random 4KB write in the sustained state. The 2.5-inch form factor of PM983 (U.2) can support higher capacity systems, allowing you to shrink your footprint and significantly reduce your total cost of ownership.

Samsung M.2
SMCI P/NManufacturer P/NDescription
HDS-SUN1-MZQLB960HAJR07MZQLB960HAJR-00007Samsung PM983 960GB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 7mm (1.3 DWPD)
HDS-SUN1-MZQLB1T9HAJR07MZQLB1T9HAJR-00007Samsung PM983 1.92TB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 7mm (1.3 DWPD)
HDS-SUN1-MZQLB3T8HALS07MZQLB3T8HALS-00007Samsung PM983 3.84TB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 7mm (1.3 DWPD)
HDS-SUN1-MZQLB7T6HMLA07MZQLB7T6HMLA-00007Samsung PM983 7.68TB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 7mm (1.3 DWPD)

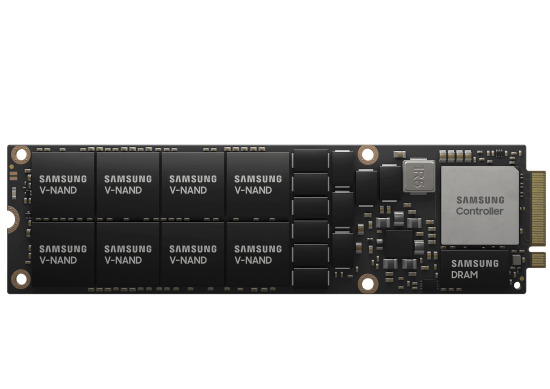

NF1: Designed for the Next Generation

The space optimized NF1 form factor is designed to efficiently scale data centers. Advanced enterprise-grade features, such as front-loading, hot swap, LED indicators, and power loss protection (PLP) make PM983 (NF1) an easy, yet reliable, replacement for existing 2.5-inch and M.2 drives.

Samsung NF1
SMCI P/NManufacturer P/NDescription
HDS-SSN0-MZ4LB3T8HALS003MZ4LB3T8HALS-00003Samsung PM983 3.84TB NVMe PCI-E 3.0 x4 NF1 30.5x110mm (1.3 DWPD)
HDS-SSN0-MZ4LB7T6HMLA03MZ4LB7T6HMLA-00003Samsung PM983 7.68TB NVMe PCI-E 3.0 x4 NF1 30.5x110mm (1.3 DWPD)
HDS-SSN0-MZ4LB15THMLA03MZ4LB15THMLA-00003Samsung PM983 15.36TB NVMe PCI-E 3.0 x4 NF1 30.5x110mm (1.3 DWPD)

PM1725b

Featuring Samsung’s innovative 3D vertical NAND (V-NAND) flash memory and an optimized controller, PM1725b delivers the highest levels of random read speed and ultra-low latency rate. The NVMe protocol was built from the ground up to maximize flash storage performance and minimize latency. It replaces legacy disk-based protocols and uses the PCIe interface to enable higher bandwidth. PM1725b also supports dual-port functionality, enabling high-availability via two access paths to the storage array controller. This feature delivers the reliability, availability, and serviceability (RAS) that is required for enterprise storage designs.

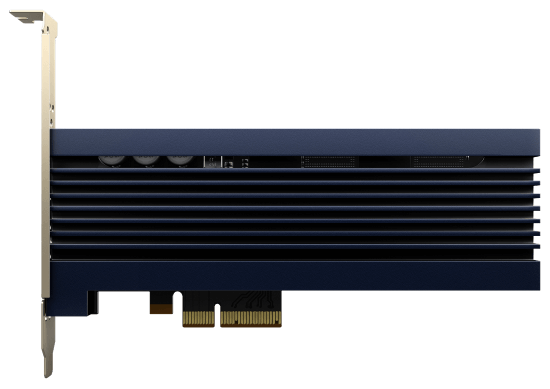

HHHL: Ultra-High Capacity

With its ultra-high throughput capacity, the Samsung SSD PM1725b (HHHL) offers unparalleled performance and reliability for enterprise solutions. Also, capable of delivering up to 5 drive writes per day, the Samsung SSD PM1725b (HHHL) offers unparalleled endurance and reliability.

Samsung HHHL
SMCI P/NManufacturer P/NDescription
HDS-SUN0-MZWLL1T6HAJQ05MZWLL1T6HAJQ-00005Samsung PM1725B 1.6TB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 15mm (3 DWPD)
HDS-SUN0-MZWLL3T2HAJQ05MZWLL3T2HAJQ-00005Samsung PM1725B 3.2TB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 15mm (3 DWPD)
HDS-SUN0-MZWLL6T4HMLA05MZWLL6T4HMLA-00005Samsung PM1725B 6.4TB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 15mm (3 DWPD)
HDS-SUN0-MZWLL12THMLA05MZWLL12THMLA-00005Samsung PM1725B 12.8TB NVMe PCI-E 3.0 x4 V4 TLC 2.5" 15mm (3 DWPD)
HDS-SAN0-MZPLL1T6HAJQ05MZPLL1T6HAJQ-00005Samsung PM1725B 1.6TB NVMe PCI-E 3.0 x4 V4 TLC AoC HHHL (3 DWPD)
HDS-SAN0-MZPLL3T2HAJQ05MZPLL3T2HAJQ-00005Samsung PM1725B 3.2TB NVMe PCI-E 3.0 x4 V4 TLC AoC HHHL (3 DWPD)
HDS-SAN0-MZPLL6T4HMLA05MZPLL6T4HMLA-00005Samsung PM1725B 6.4TB NVMe PCI-E 3.0 x4 V4 TLC AoC HHHL (3 DWPD)
HDS-SAN0-MZPLL12THMLA05MZPLL12THMLA-00005Samsung PM1725B 12.8TB NVMe PCI-E 3.0 x4 V4 TLC AoC HHHL (3 DWPD)
